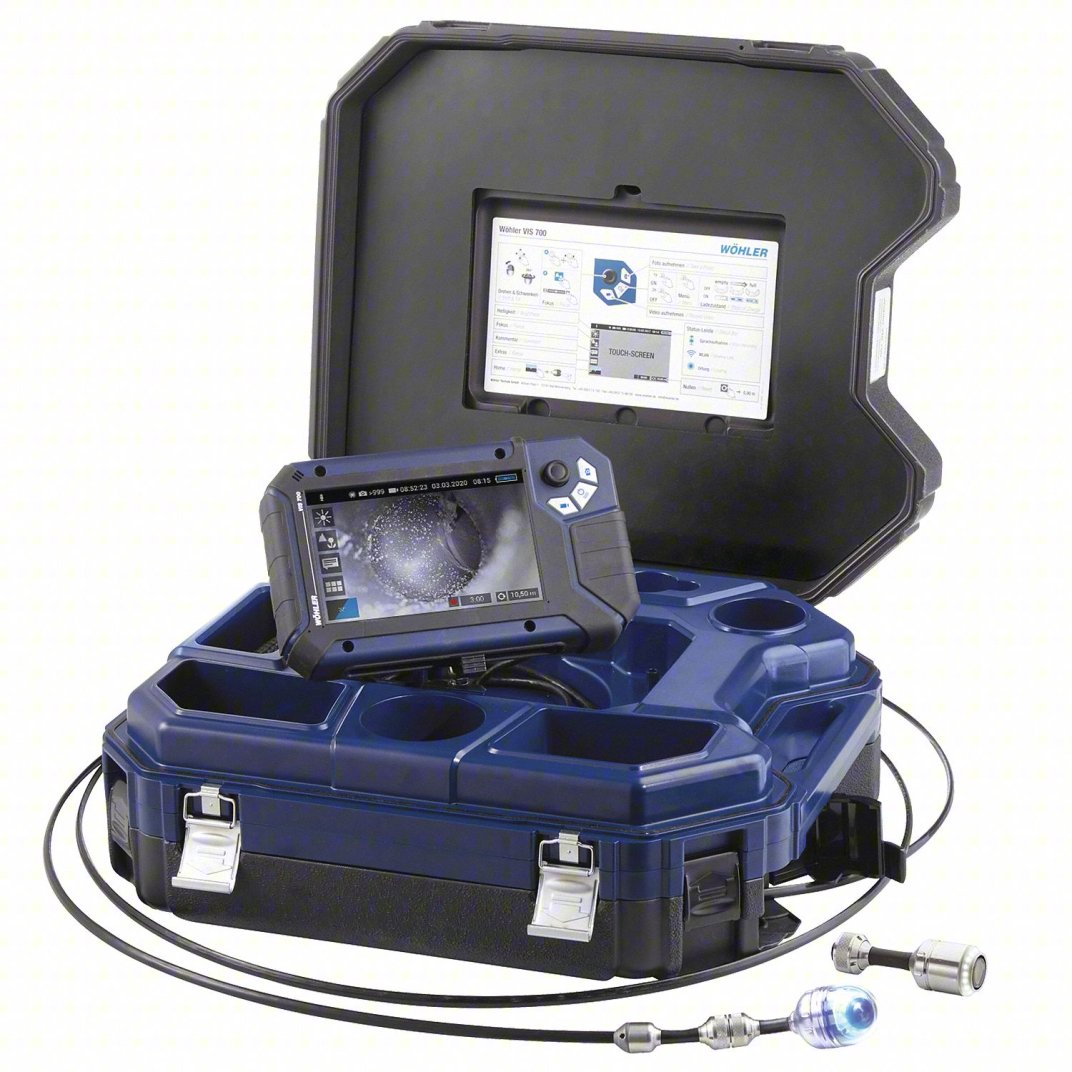

Wöhler VIS 700 PLUS HD Inspection Camera with Dual Camera Heads

The Wöhler VIS 700 PLUS HD Inspection Camera is a push-rod inspection camera for visual inspection of drain pipes, ventilation lines, and exhaust pipes. It provides HD image capture, position and angle visibility, and radio-locating support for inspection and documentation work. The platform is suited to wastewater, flue, duct, and general maintenance workflows.

- A 100 ft push rod advances the camera system through pipe runs and guides the camera head to the inspection point.
- The 1.5 in camera head pans through 360° and tilts 180° to reveal pipe walls, joints, and changes in direction from multiple viewing angles.
- Adjustable focus supports viewing from close range to long distance, helping maintain image sharpness throughout the inspection path.
- Electronic distance counting together with position and angle display keeps inspection progress visible during documentation and localization.
- Integrated locator frequencies allow the camera head to be traced with a compatible locator during line inspection work.

- A 7 in TFT display in 16:9 format with 1,280 x 800 px resolution presents inspection imagery in HD detail.
- The detachable 1.5 in HD camera head records at 1,280 x 720 px and is rated IP67 for inspection work in demanding environments.
- The included 1 in HD miniature camera head extends access into smaller pipe sections and tighter bends while maintaining HD image quality.
- Photo, video, and voice documentation support inspection reporting, with a 32 GB SD card included for data storage.
- A lithium-ion rechargeable battery supports up to 4 hours of operating time for mobile inspection work.

- Drain pipe and wastewater line inspection
- Ventilation line and air duct inspection
- Exhaust pipe, flue gas system, and house connection inspection
