Wöhler L 200 Locator Receiver for VIS Camera Heads

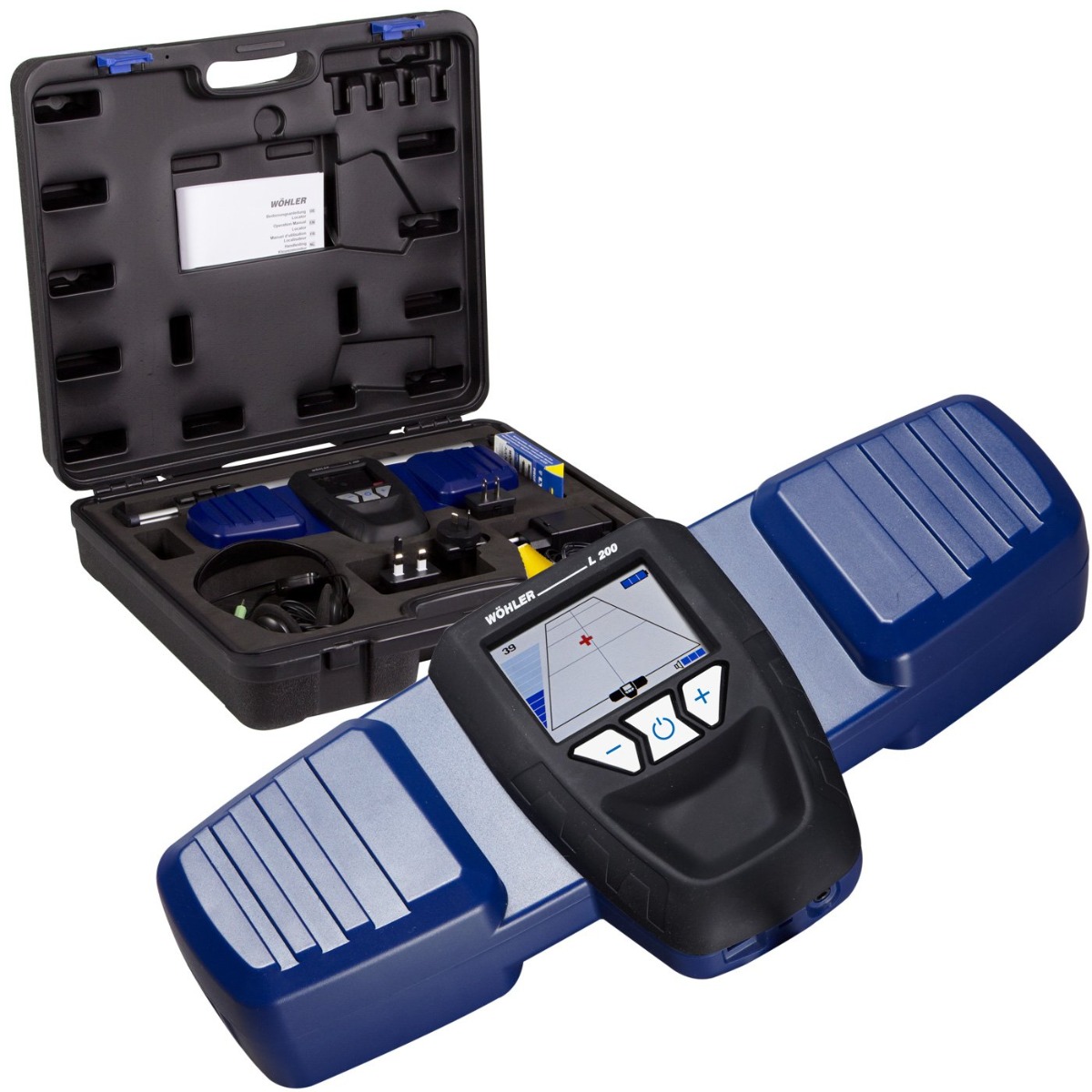

WOHLER L200 Locator Receiver for Camera Heads 1" / 1.5"

In stock

Free shipping on orders over $200 One year warranty

Wöhler L 200 Camera Head Locator Receiver

SKU: CART-03065

Model: 7430

Product Condition: New

$1,690.00

$3,588.00

Wöhler L 200 Locator pinpoints compatible VIS camera heads in pipelines, chimneys, and concealed areas with a graphical display, acoustic guidance, and 8.9 / 9.2 kHz locating capability.

One year warranty

Free return within 30 days of purchase.

Have a question ? Ask an expert

Live chat (833) 322-7865 Email

Browse by category:

Wohler HVAC Inspection Tools HVAC Equipment, Tools and Accessories

Product Description

Camera Head Localization for Pipeline and Chimney Inspection

The Wöhler L 200 Locator is a locator receiver designed for exact localization of compatible Wöhler VIS camera heads. It detects transmitted camera head signals and presents position guidance on a graphical display for locating within pipelines, chimneys, and floor or ceiling areas. The locating workflow supports inspection tasks where damage points need to be identified and marked with precision.

Radio Signal Detection with Graphical Position Guidance

- Receives transmitted radio signals from compatible camera heads operating at 8.9 kHz and 9.2 kHz
- Displays camera head position graphically so the locating direction can be followed during inspection work
- Uses crosshairs and signal strength indication to show how far away and in which direction the camera head is located
- Supports acoustic orientation through loudspeaker or headphones while tracing the transmitted signal

Localization Functions and System Compatibility

- Graphical display presents the camera head position during locating
- Headphone output is specified at 32 Ohm
- Powered by a lithium-ion rechargeable battery
- Designed for use with 1" and 1.5" camera heads
- Compatible with current Wöhler VIS 2xx, 3xx, 500, and 700 camera systems

Pipeline, Chimney, and Concealed Area Inspection

- Exact localization of camera heads in pipelines
- Exact localization of camera heads in chimneys
- Exact localization of camera heads in floor or ceiling areas

Specifications

MPN 7430

Product Condition New

Shipping Length (in.) 24

Shipping Width (In.) 15

Shipping Height (In.) 6

Item Returns This item can be returned

Specification	Value
Product Name	Wöhler L 200 Locator
Article Number	7430
Display	Graphical display of the camera head position
Headphone Output Impedance	32 Ohm
Power Supply	Lithium-ion rechargeable battery
Frequency	8.9 / 9.2 kHz
Compatible Camera Head Sizes	1" / 1.5"
Compatible Systems	Wöhler VIS 2xx / 3xx / 500 / 700
