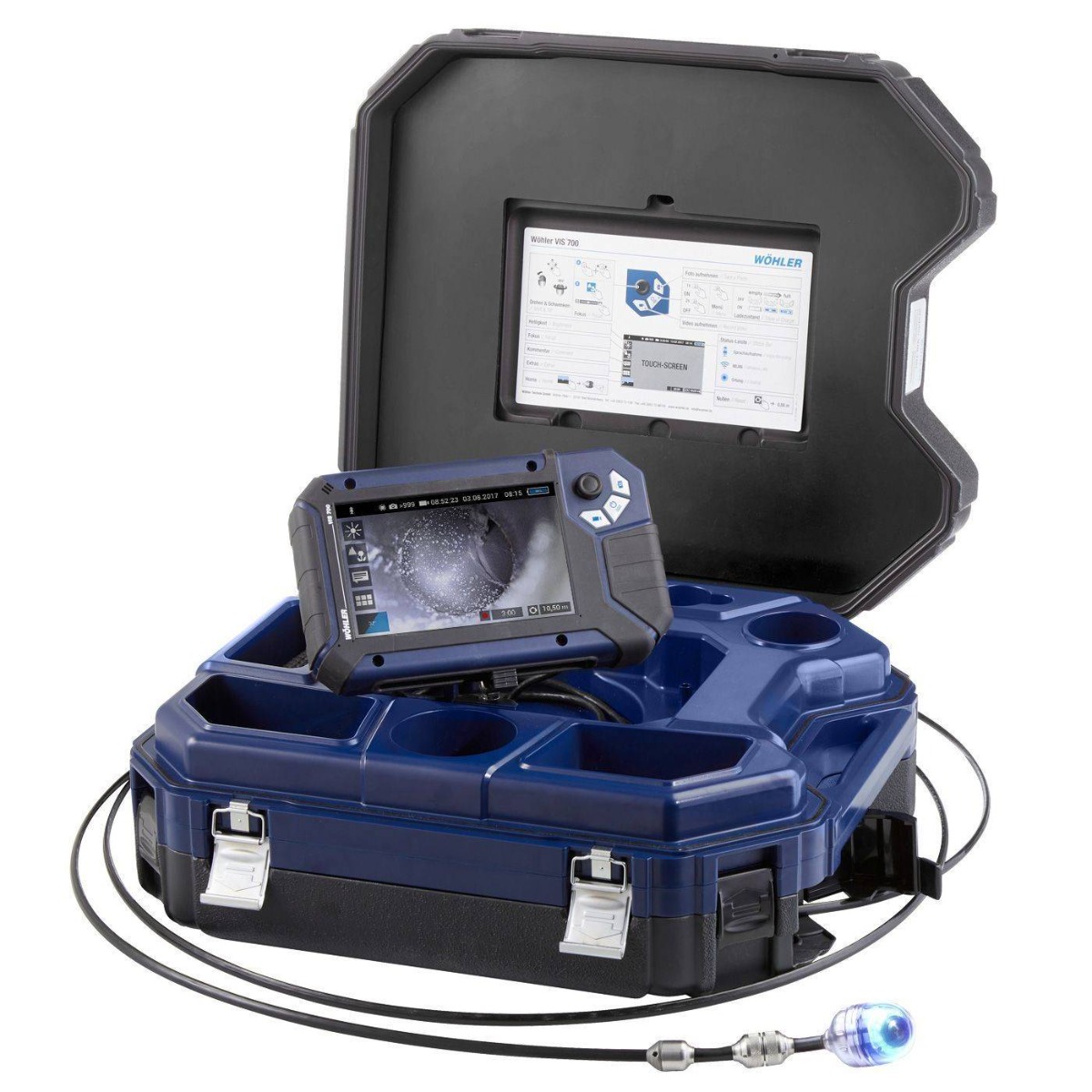

Wöhler VIS 700 HD Inspection Camera

The Wöhler VIS 700 is a video inspection camera designed for visual inspection of pipes, ducts, and exhaust systems. It captures high-resolution images and video while enabling controlled positioning and viewing during inspection tasks. The system supports inspection workflows across building services, drainage, and industrial environments.

- A 1.5 in detachable camera head pans 360° and tilts 180° to view internal surfaces from multiple angles.
- Adjustable focus from 1 in to infinity enables clear imaging at varying inspection distances.
- Touchscreen and joystick control provide direct navigation and positioning during inspection.
- The home function aligns the camera head to a forward position for consistent orientation.
- Distance counter and angle display provide positional reference during inspection.

- 7 in TFT monitor with 1280 x 800 resolution supports clear viewing of inspection footage.
- Camera head resolution of 1280 x 720 provides detailed visual capture.
- IP67-rated camera head supports operation in wet inspection environments.
- Locator transmission frequencies of 512 Hz, 8.9 kHz, and 9.2 kHz support signal tracing.
- 100 ft camera rod and 32 GB storage enable extended inspection and recording sessions.

- Inspection of drainage and house connection pipes.
- Inspection of ventilation ducts, flue gas systems, and exhaust pathways.
- Inspection of shafts, cavities, and industrial plant systems.
