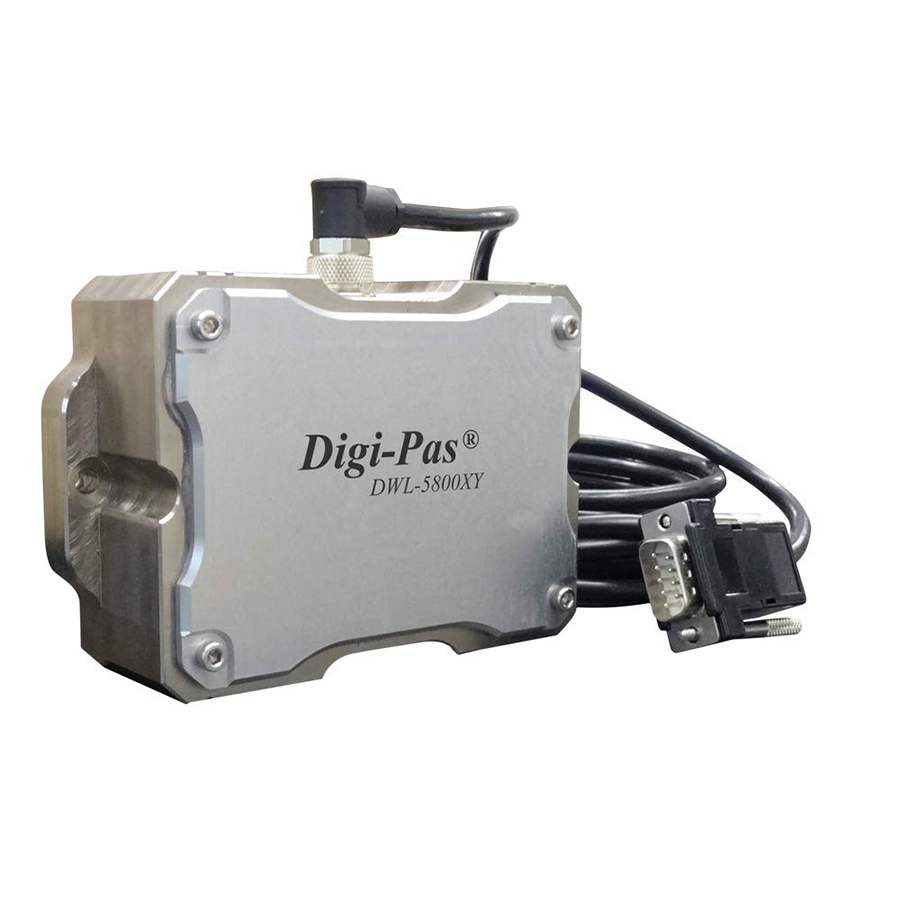

Digi-Pas DWL5800XY 2-Axis Ultra High-Precision Digital Inclinometer, 1 Arcsec Accuracy

The Digi-Pas DWL-5800XY is a 2-axis inclination sensor module designed for integration into machinery, equipment, and structural systems. It measures plane levelling position, 2D tilt angles, and vibration with real-time monitoring capability. The compact MEMS-based design supports precision angular positioning workflows where continuous measurement and data acquisition are required.

- Uses advanced MEMS sensor technology to detect inclination across two axes for simultaneous planar angle measurement.
- Measures plane levelling position and 2D tilt angles in real time for continuous angular status monitoring.
- Supports vibration measurement and data logging workflows when operated with PC Sync Software.
- Integrates into machine, equipment, or structural assemblies for embedded positional monitoring.

- Measures 0 to ±14400 arcsec in single-axis mode and 0 to ±3600 arcsec in dual-axis mode.
- Delivers 1 arcsec resolution and repeatability, with accuracy of ±1 arcsec from 0 to ±1080 arcsec and ±3 arcsec at other angles.
- Provides negligible cross axis error of ±0.0001° and 500 ms response time.
- Supports RS232, RS485, USB 2.0, and optional wireless Bluetooth communication.
- Features IP65 waterproof protection, steel/aluminium construction, 9V DC supply, and operating temperature from 10°C to 40°C.

- Precision machine and equipment angular position monitoring.
- Structural stability and plane levelling measurement.
- Real-time tilt and vibration monitoring in integrated system environments.

- PC Sync PRO Software enables real-time reading acquisition, display, and data logging from the sensor module.
- Supports saving readings into Excel format for further analysis.
- Extends system usability for engineers requiring programmable monitoring without building a custom software interface from scratch.
