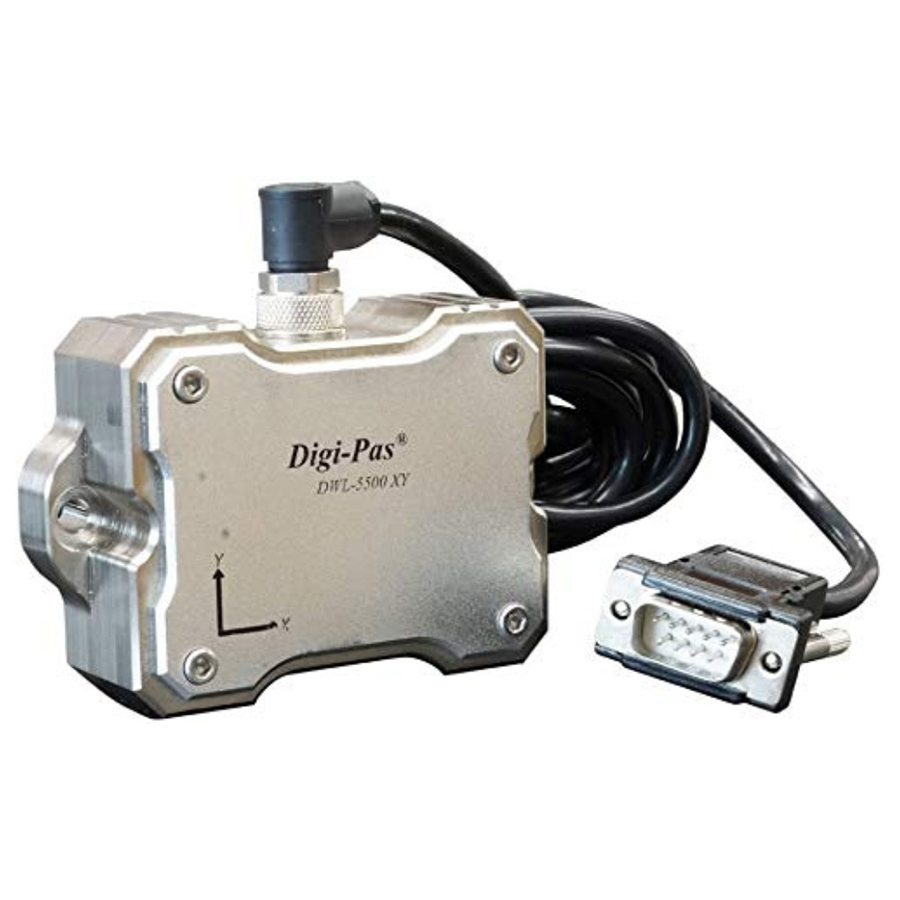

Digi-Pas DWL5500XY 2-Axis Digital Inclinometer High-Precision Tilt Angle Sensor Module, 0.0002 in/ft, NIST Traceable

The Digi-Pas DWL5500XY is a 2-axis precision tilt sensor module for embedded leveling and inclination measurement. It performs real-time monitoring of plane leveling state, dual-axis tilt angles, and vibration data through an integrated digital sensor architecture. It is suited for machinery, equipment, and structural monitoring environments that require fixed-position measurement feedback.

- Measures tilt simultaneously across single-axis and dual-axis modes to monitor leveling state and angular change.
- Uses an embedded digital sensing architecture to output real-time inclination data for connected systems.
- Captures straightness and vibration-related movement as part of continuous monitoring workflows.
- Integrates directly into machines, equipment, or structures for fixed-installation measurement tasks.

- Measuring range is 0° to ±10.000° in single-axis mode and 0° to ±5.000° in dual-axis mode.
- Resolution is 0.001° (18 μm/M, 0.0002 in/ft) with accuracy of ±0.001° from 0° to ±2.000° and ±0.003° at other angles.
- Includes a 2.0g vibrometer, IP65 protection, 150 mA maximum load current, and regulated 9V to 12V DC input.
- Supports RS485 output directly, with USB, RS232, RS485, SPDT relay, and optional Bluetooth available when used with the required control box.
- Operates from -20°C to +70°C and stores from -30°C to +80°C.

- Real-time plane leveling monitoring in machinery and equipment installations.
- Dual-axis tilt and straightness measurement in embedded structural setups.
- Vibration and inclination data acquisition for monitoring and logging workflows.
