Digi-Pas DWL5000XY / DWL5500XY / DWL5800XY Control Box High-Precision 2-Axis Digital Inclinometer Sensor Module Interface

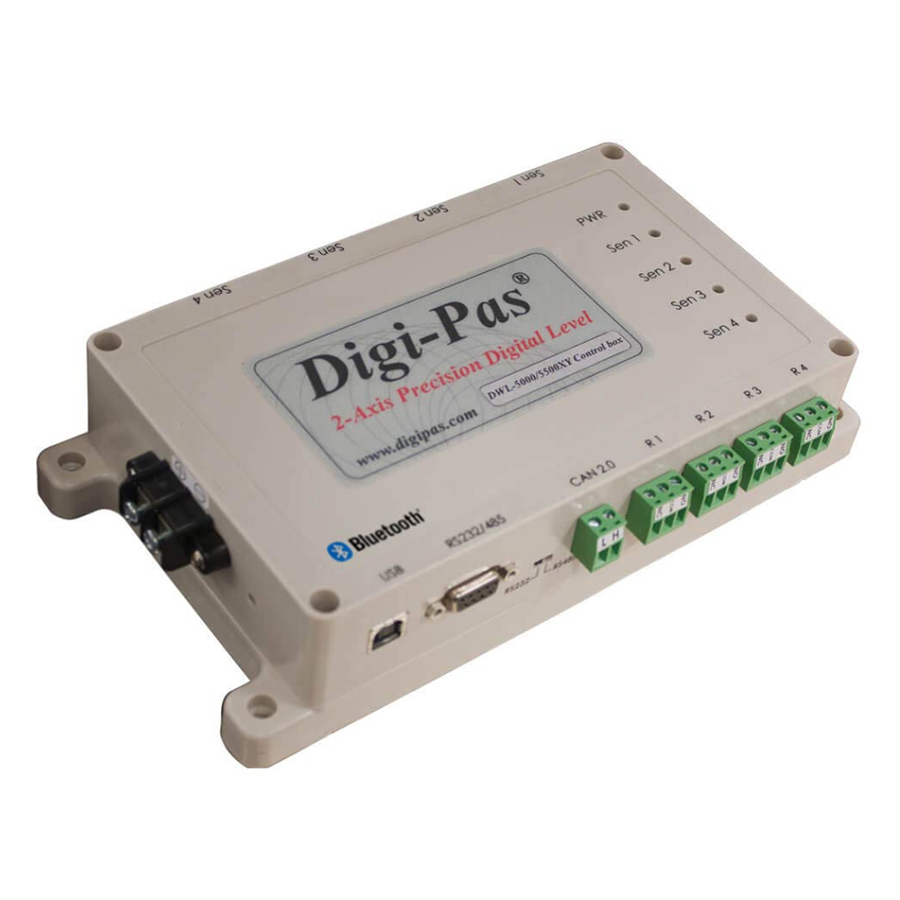

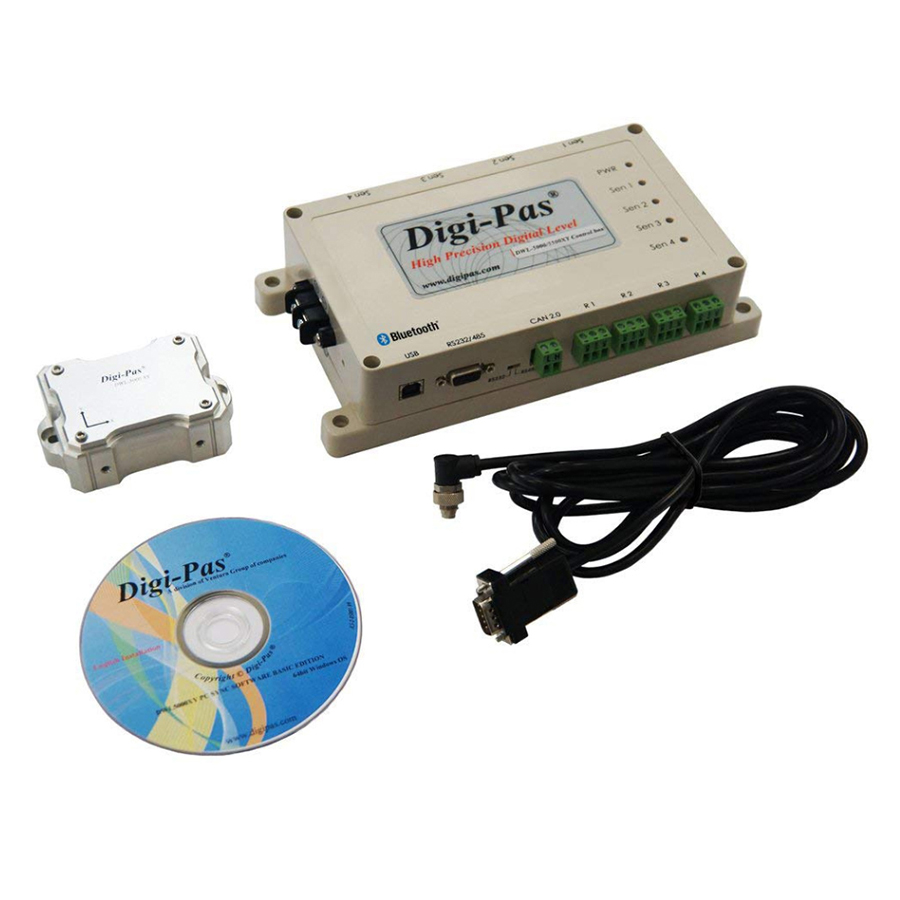

The Digi-Pas DWL5000XY/5500XY Control Box with Bluetooth is a tilt sensor control box designed for use with compatible Digi-Pas 2-axis sensor modules. It enables real-time acquisition of leveling, angular, and vibration data through supported communication links while also supporting relay-based control. It fits machine, equipment, and structure monitoring workflows that require fast setup and direct data access.

- Connects with compatible Digi-Pas 2-axis sensor modules to collect leveling, tilt angle, and vibration readings in real time.
- Routes measurement data through USB, RS232, RS485, or optional Bluetooth communication for system integration and monitoring.
- Supports programmable relay contact output so target tilt or vibration conditions can trigger connected external devices.
- Continues relay-trigger operation after setup, allowing control functions to run without a continuously attached PC.

- Supports connection of up to 4 compatible sensor modules for simultaneous monitoring.
- Provides 4 x SPDT relay outputs rated at 3A at 30 VDC (NC) and 5A at 30 VDC (NO).
- Uses RS232 or RS485 serial communication at 115200 bps with 8 data bits, no parity, and 1 stop bit, plus USB 2.0 connectivity.
- Operates from 12V DC power with maximum current consumption of 1.2A.
- Rated for operation from -20°C to +70°C and storage from -30°C to +80°C.

- Real-time plane leveling state, 2D tilt angle, and vibration monitoring for integrated machine or equipment systems.
- Preliminary assessment and exploratory monitoring setups that require immediate data access without custom code development.
- Relay-based control workflows for externally connected warning or actuation devices.
