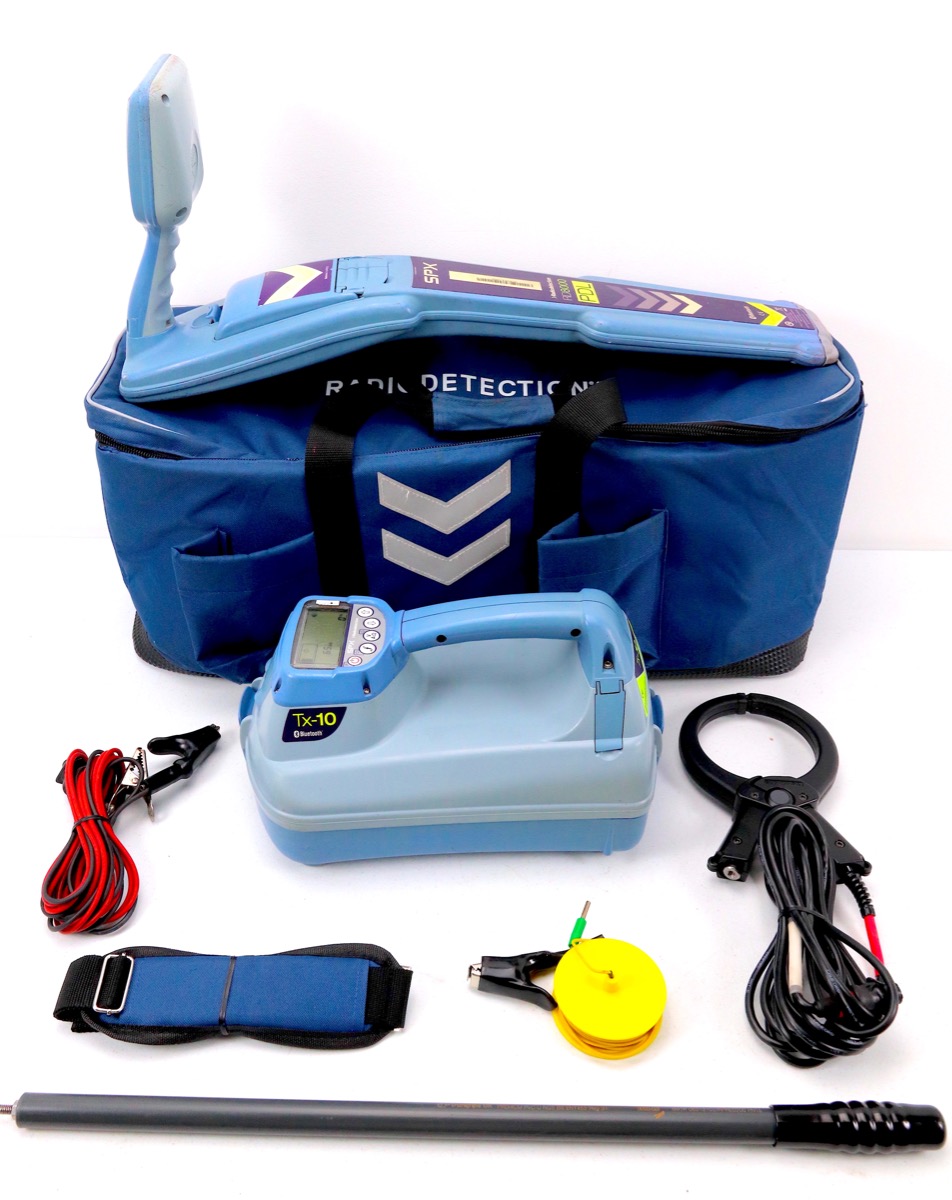

SPX Radiodetection RD8000 PDL with Tx-10 Cable and Pipe Locator Kit (CD, TruDepth)

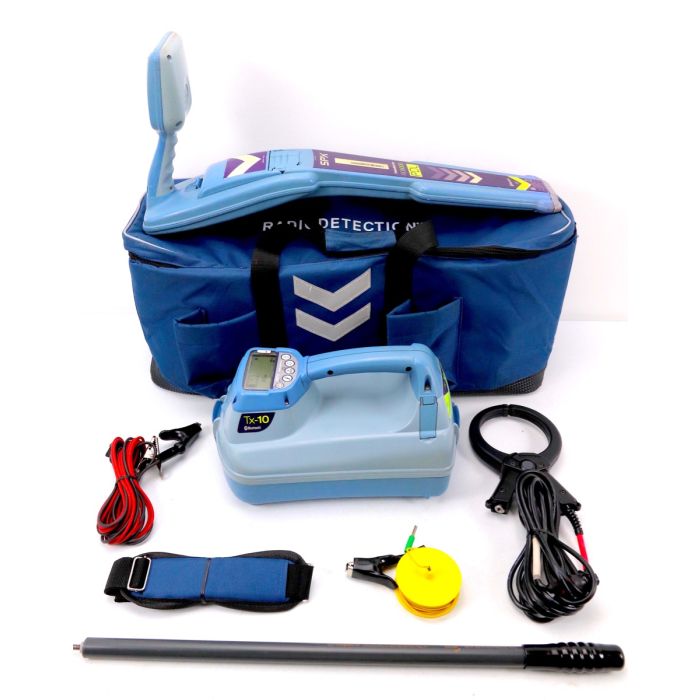

SPX Radiodetection RD8000 PDL Cable and Pipe Locator Kit with Tx-10 10W Transmitter

The SPX Radiodetection RD8000 PDL is a precision cable and pipe locator configured here with a Tx-10 10W transmitter. The RD8000 series is designed for locating buried conductive utilities using active transmitter-applied signals and passive survey modes. The PDL variant supports extended active frequency coverage and Current Direction (CD) functionality within the RD8000 range.

RD8000 PDL Variant Capabilities

• Active frequency coverage from 50Hz to 200kHz (model dependent set).
• Current Direction (CD) functionality using paired frequencies for identifying a target line among parallel conductors.
• Peak, Null, and Combined Peak/Null locate modes.
• TruDepth depth indication when correctly oriented above the target line.
• Passive Avoidance mode supporting Power and Radio detection.
• Guidance Mode with visual indicators and signal strength display.
• Bluetooth and USB connectivity for supported data interaction.
• IP54 environmental protection rating.

Tx-10 Transmitter Scope

The Radiodetection Tx-10 is a 10W transmitter designed to apply traceable signals to conductive utilities through direct connection or induction methods. It supports selectable voltage output options and a broad active frequency range compatible with the RD8000 platform. The transmitter maintains constant current across its specified bandwidth and includes a multimeter function for measurement of voltage, current, impedance, and power.

System Architecture

When paired, the RD8000 PDL locator detects and processes the transmitted signal applied by the Tx-10. The locator’s digital signal processing platform provides visual and proportional indicators for line position and depth measurement, while the transmitter supplies adjustable signal output to support varying coupling conditions. Both instruments are constructed with injection-molded ABS housings and are rated IP54 for field environments.

Applications

• Locating buried conductive cables and metallic pipes using active signal application.
• Passive detection of power and radio signals present on underground utilities.
• Identification of a target conductor among parallel lines using CD functionality.
