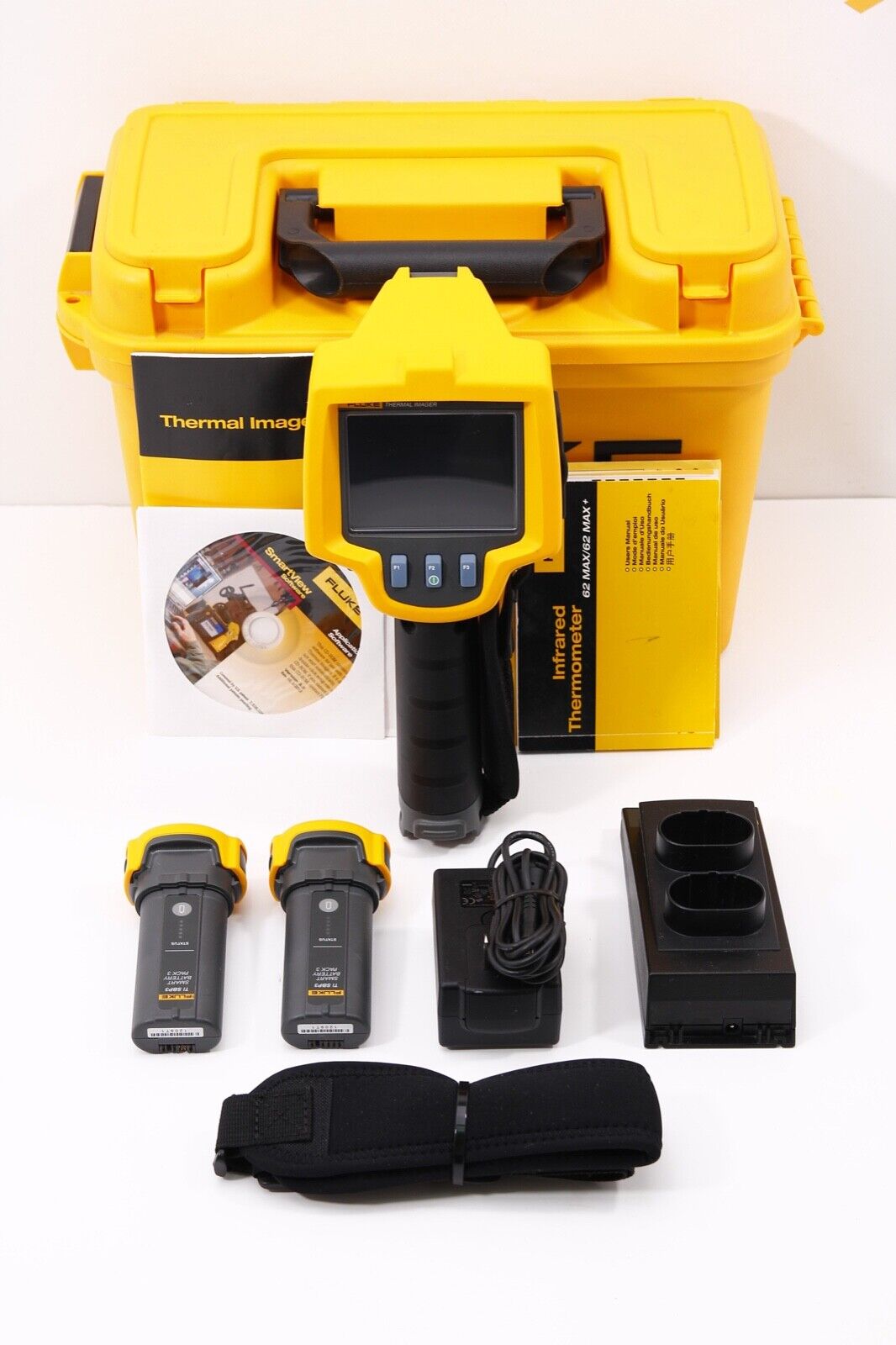

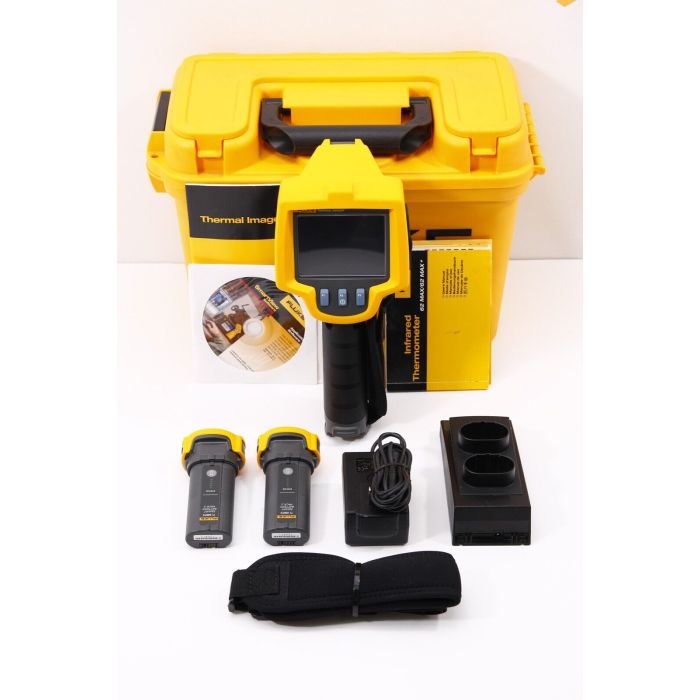

Fluke TiR32 Infrared Thermal Imaging Camera Thermal inspection camera for industrial maintenance, diagnostics, 320x240 60Hz

High-Resolution 60 Hz Thermal Imaging for Building Diagnostics

The Fluke TiR32 60 Hz infrared camera delivers professional-grade 320 × 240 thermal imaging with real-time refresh for fast, accurate building and electrical inspections. Designed for energy audits, moisture detection, and HVAC troubleshooting, the TiR32 combines rugged field construction with Fluke’s IR-Fusion® visual overlay technology.

Why It Helps

• Quickly locate insulation gaps, roof leaks, or wiring hot spots using a 320 × 240 detector and 60 Hz live display.
• IR-Fusion® overlays visible and infrared images for easier target recognition and reporting.
• Voice annotation up to 60 s per image for streamlined documentation.
• Battery hot-swap design ensures continuous field operation.

Key Highlights

• Resolution: 320 × 240 (76 800 pixels) | Frame Rate: 60 Hz NTSC.
• Temperature range: –20 °C to +150 °C (–4 °F to +302 °F); accuracy ±2 °C or 2 %.
• Thermal sensitivity ≤ 0.04 °C @ 30 °C (40 mK).
• Manual focus | FOV 23° × 17° | Spectral 7.5–14 µm.
• IP54-rated housing | 6.5 ft drop tested | Voice annotation | SD storage.

Applications

• Building envelope and insulation diagnostics
• Electrical panel and busbar thermal scanning
• Moisture detection and HVAC performance analysis
• Preventive maintenance and energy audits
