Wohler A450 Combustion Analyzer Advanced Set - 10,000 ppm Sensor

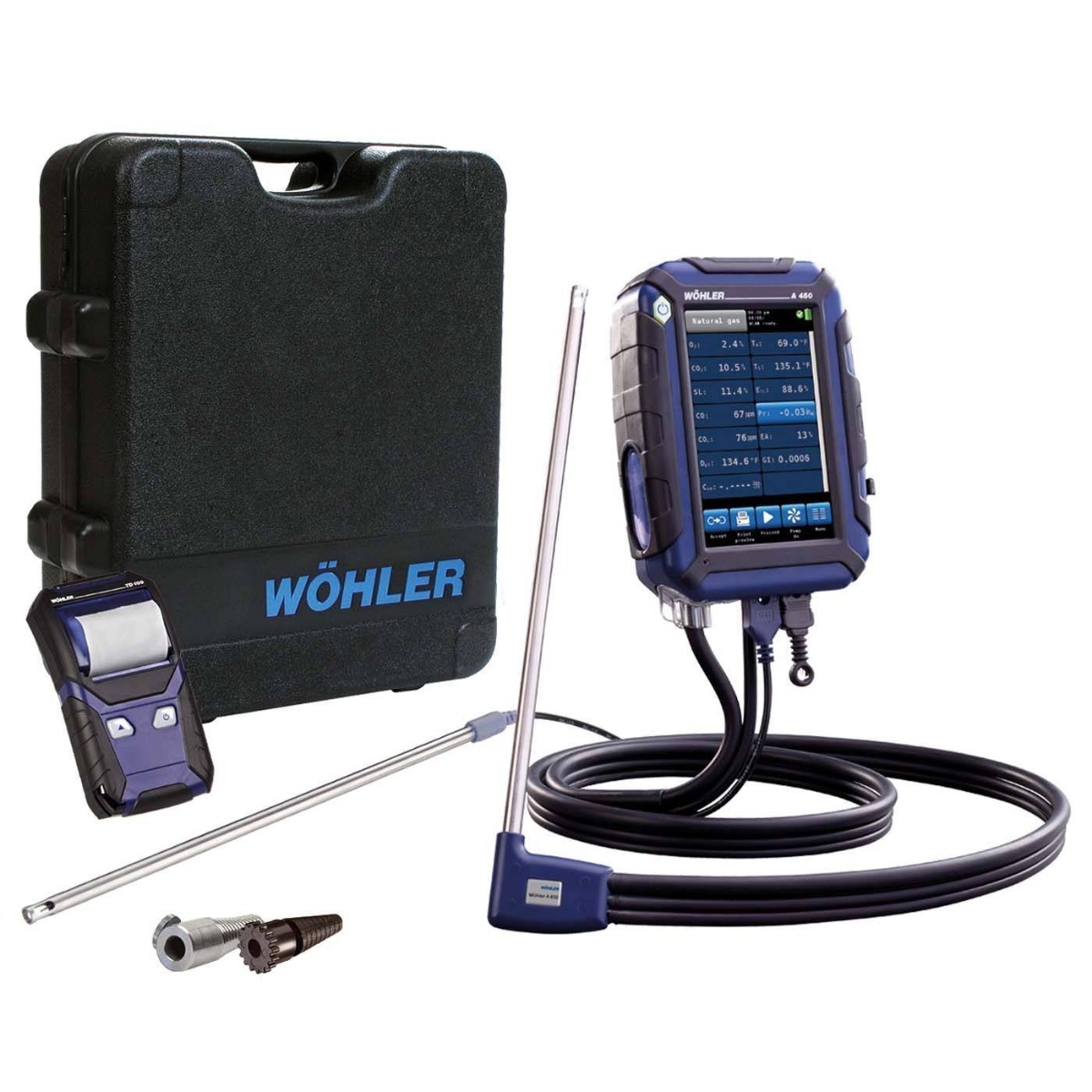

WOHLER A450 Combustion Analyzer Advanced Set - 10,000 ppm Sensor

In stock

Free shipping on orders over $200 One year warranty

Wohler A450 Combustion Analyzer Advanced Set - 10,000 ppm Sensor

SKU: CART-03270

Model: 8389

Product Condition: New

$2,090.00

$4,446.00

WOHLER A450 10,000 PPM CO Sensor: Unleash Precision and Versatility

One year warranty

Free return within 30 days of purchase.

Have a question ? Ask an expert

Live chat (833) 322-7865 Email

Browse by category:

Wohler Indoor Air Quality & Gas Testing HVAC Equipment, Tools and Accessories Combustion Gas Analyzers and Accessories

Product Description

Advanced Flue Gas Analyzer Kit

The Wöhler A 450 (Item 8389) is a professional combustion analyzer configured for reliable residential flue gas analysis, burner tuning, and draft diagnostics. This version includes O₂ and CO measurement (10,000 ppm).

Comprehensive Gas Measurement Capabilities

Measures oxygen (O₂) from 0.0 to 21.0% using an electrochemical sensor, supporting combustion efficiency calculations and air-to-fuel ratio adjustment.
Measures carbon monoxide (CO) from 0 to 10,000 ppm with 1 ppm resolution, enabling detailed burner setup and safety checks.
Uses an electromechanical sensor.

Pressure and Draft Measurement

Measures differential pressure and chimney draft from 0.00 to ±110.00 hPa with 1 Pa resolution, providing a direct way to verify that venting conditions align with appliance requirements. This helps identify draft-related causes of unstable combustion, nuisance lockouts, or inconsistent combustion readings across operating conditions.

Temperature Measurement

Measures flue gas temperature from -20°C to 800°C (-4°F to 1,472°F) with 0.1°C resolution, supporting evaluation of combustion performance and venting conditions through stack temperature trends.
Measures ambient temperature from -20°C to 100°C (-4°F to 212°F) with 0.1°C resolution,providing a consistent reference for calculations and documentation of operating conditions

Specifications

MPN 8389

Product Condition New

Shipping Length (in.) 7

Shipping Width (In.) 5

Shipping Height (In.) 3

Item Returns This item can be returned

Gas, Pressure/Draft, and Temperature Measurement Specifications

Measurement	Range	Accuracy
Oxygen (O₂)	0.0 to 21.0 %	± 0.3 Vol.-%
Carbon Monoxide	0 to 10,000 Vol. ppm	± 40 ppm (<1,000 ppm), otherwise 10 % of reading
Chimney draught / differential pressure	0.00 to ± 110.00 hPa	2 Pa (<40 Pa), otherwise 5 % of reading
Flue gas temperature (TS)	-20.0 to 800.0 °C (-4 to 1,472 °F)	-20 to 133 °C: ± 2 °C (± 3.6 °F) 133 to 800 °C: 1.5 % of reading
Ambient temperature (TA)	-20.0 to 100 °C (-4 to 212 °F)	± 1 °C (± 1.8 °F)

Other Specifications

Spec	Value
Power supply	Rechargeable Lithium-ion battery 3.7 V, 2250 mAh, charging via USB
Operation time	Approx. 6.5 h
Charging time (full charge)	Approx. 3 hours
Battery charging cycles	After 500 charging cycles, at least 70 % of the capacity are still available
Storage temperature	-20 to 50 °C (-4 to 122 °F)
Operation temperature	+5 to +40 °C (41 to 104 °F)
Relative humidity	30% to 70 %
Weight	1.37 lbs
Dimensions (without probe)	220 x 160 x 55 mm (8.66 x 6.30 x 2.17 in)
Hose length (probe and hose assembly)	1.5 m (4.92 ft)
