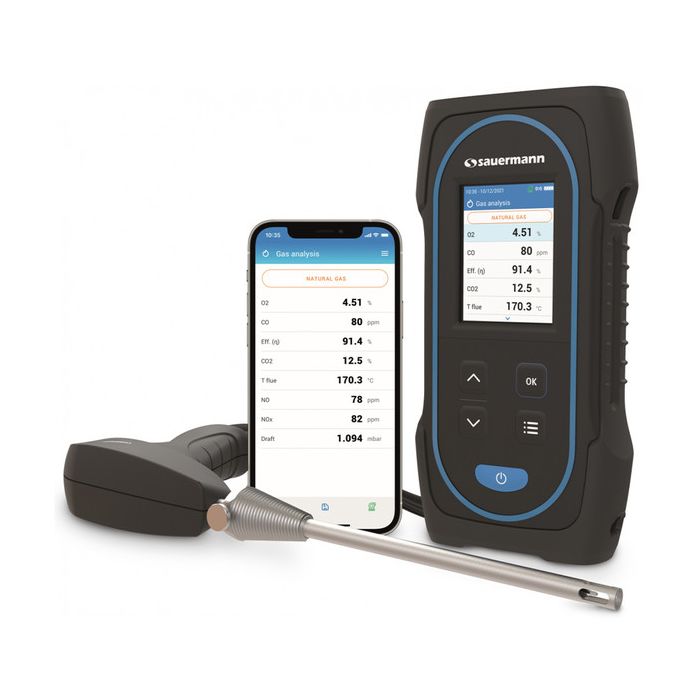

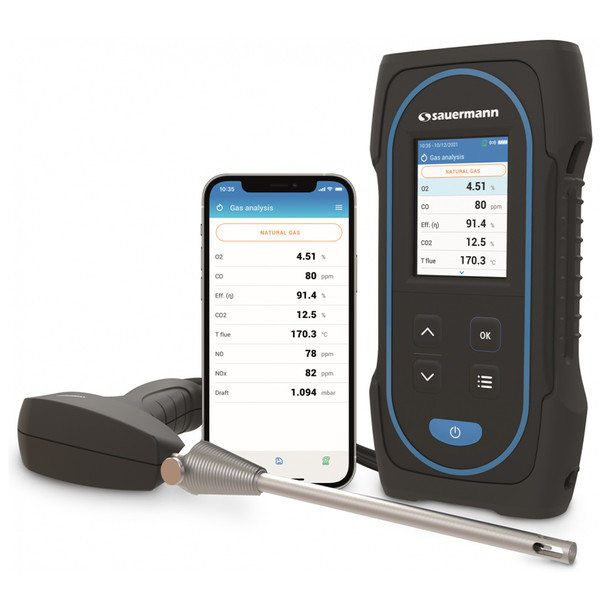

Sauermann Si-CA 030 KIT 2AS Si-CA 030 Combustion Gas Analyzer Kit 2AS, 2 Sensors

SKU: CART-02808
Model: SICA 030 KIT 2AS
Product Condition: New
$1,115.53

The Si-CA 030 provides heating engineers with all the essential tools for inspecting and servicing both residential and commercial boilers. It comes with wireless connectivity to our smartphone application and the automatic creation of service reports and certificates.

Read more
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
Sauermann Group Indoor Air Quality & Gas Testing Combustion Gas Analyzers and Accessories
Product Description

Reliable Two-Gas Combustion Testing with Draft Measurement and Core Calculations

The Sauermann Si-CA 030 Kit 2AS is designed for residential and light commercial combustion service where you need dependable Oâ‚‚/CO measurement, draft diagnostics, and clear calculated results for tuning and documentation. It supports data management with automatic logging and report creation to help standardize reporting across service calls.

Gas Measurements and Calculated Combustion Values

  • Oâ‚‚ measurement: 0 to 25%

  • CO measurement: 0 to 8,000 ppm

  • Calculated COâ‚‚: 0 to 99.9%

  • Calculated excess air: 0 to 999%

  • Calculated efficiency: 0 to 100% (Gross/HHV) and up to 125% (Net/LHV)

Draft and Temperature Diagnostics

  • Pressure / draft: -200 to +200 mbar

  • Flue temperature: -4 to 2282 °F

  • Air temperature: -4 to 248 °F

Field Workflow and Protection Features

  • Auto pump cut-off for high CO levels

  • Predictive maintenance with estimated sensor life tracking and calibration reminders

  • Wireless and USB connectivity for data handling

  • IP42 protection rating

Specifications
Specifications
MPN 27496
Product Condition New
Shipping Length (in.) 10
Shipping Width (In.) 10
Shipping Height (In.) 10
Item Returns This item can be returned

Gas, Temperature, and Pressure Measurement Specifications

Measurement Range Resolution
Oâ‚‚ 0 to 25% 0.01%
CO 0 to 8000 ppm 1 ppm
COâ‚‚ (Calculated) 0 to 99.9% 0.1%
Flue Temperature -4 to 2282 °F 0.1 °F
Air Temperature -4 to 248 °F 0.1 °F
Pressure / Draft -200 to +200 mbar
(-80 to +80 in H2O)		 0.01 mbar
(0.001 in H2O)
Excess Air (Calculated) 0 to 999% 1%
Efficiency (Calculated, Gross/HHV) 0 to 100% 0.1%
Efficiency (Calculated, Net/LHV) 0 to 125% 0.1%

Other Specifications

Spec Value
Protection Rating IP42
Dimensions 7.5 x 3.5 x 4.9 in
Weight 350 g (12 oz)
Display Color display screen; 320 x 240 pixels
Keypad 5 keys
Material ABS-PC
Battery Li-Ion 5100 mAh, 3.6 V
Battery Life > 8 hours
Charging Time 6.5 hours
Operating Temperature 23 to 113 °F
Max. Operating Altitude 2000 m (6561 ft)
Storage Temperature -4 to 122 °F
Languages English, French, German, Spanish, Italian, Portuguese
Compliance 2014/53/EU (RED); 2015/863 EU (RoHS 3)
Standards / Certifications EN 50379-1, EN 50379-2; UNI 10389; UL & cUL; BS 7967:2015; BS EN 50543:2011; UNE 60670-10; ES.02173.ES; TĂśV SĂśD
What's in the box?
  • 1 x Si-CA 030 analyzer
  • 1 x O2 gas sensor
  • 1 x CO gas sensor
  • 1 x Protective rubber holster
  • 1 x 180 mm, probe rated to 800 °C with 2m Dual Hose
  • 1 x Water Trap with filter
  • 1 x AC power supply/charger
  • 1 x USB-C cable
  • 1 x Mobile app & PC software
  • 1 x Internal wireless communication module
  • 1 x Vinyl Carrying case
  • 1 x Quick Start Guide
  • 1 x Calibration certificate
