Pruftechnik OPTALIGN Plus ALI 5.200 Laser shaft alignment kit with EZ-Sweep, UniBeam, TolChek, brackets

SKU: CP101505
Model: Optalign Plus
Product Condition: Certified Pre-owned
$3,999.95

Pruftechnik OPTALIGN Plus ALI 5.200 laser shaft alignment system for rotating machinery. Supports EZ-Sweep measurement, TolChek tolerance status, RS-232 reporting, and includes transducer/reflector with bracket sets and case.

Read more
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
Pruftechnik Alignment & Balancing Tools Laser Shaft Alignment System
Product Description

Pruftechnik OPTALIGN Plus ALI 5.200 for fast, repeatable laser shaft alignment

Pruftechnik OPTALIGN Plus ALI 5.200 is a laser shaft alignment system for rotating machinery coupling alignment using a transducer/reflector measurement set and guided correction workflow. This configuration supports quick field setup with bracket mounting and RS-232 connectivity for transferring or printing alignment results.


EZ-Sweep measurement and TolChek tolerance status

  • EZ-Sweep continuous measurement method captures alignment readings during shaft rotation.
  • TolChek displays alignment condition to help determine whether corrections are required.
  • Soft foot function supports checking machine feet contact and correction values.
  • Supports alignment workflows for horizontal machines and advanced setups such as vertical machines.

UniBeam single-laser architecture with industrial housings

OPTALIGN Plus uses a single-laser measurement principle (UniBeam) to simplify optical setup in the field. The transducer and reflector are rated IP67 and the control unit is rated IP65, supporting use in industrial maintenance environments where spray, dust, and tight installation spaces are common.


Maintenance applications suited to OPTALIGN Plus

  • Motor-to-pump, motor-to-gearbox, and fan/blower coupling alignment programs.
  • Precision alignment tasks where minimal shaft rotation is available for measurement.
  • Documentation-focused maintenance workflows using RS-232 transfer/printing.
Specifications
Specifications
MPN ALI 5.200
Product Condition Certified Pre-owned
Shipping Length (in.) 20
Shipping Width (In.) 20
Shipping Height (In.) 12
Condition Type Certified Pre-Owned
Item Returns This item can be returned
System type Laser shaft alignment system (coaxial, reflected laser beam)
Laser Visible Ga-Al-As semiconductor laser
Laser wavelength (typ.) 675 nm (red, visible)
Laser safety Class 2; FDA 21CFR 1000 and 1040; beam power < 1 mW
Resolution 1 µm
Transducer environmental protection IP67 (submersible, dustproof)
Reflector type 90° roof prism
Reflector environmental protection IP67 (submersible, dustproof)
Control unit environmental protection IP65 (water spray resistant, dustproof; sealed battery compartment)
Interfaces 1 x sensor; 1 x printer/PC (serial)
Power supply 6 x 1.5V AA (IEC LR6) main; 1 x 9V (IEC 6LR61) backup
What's in the box?

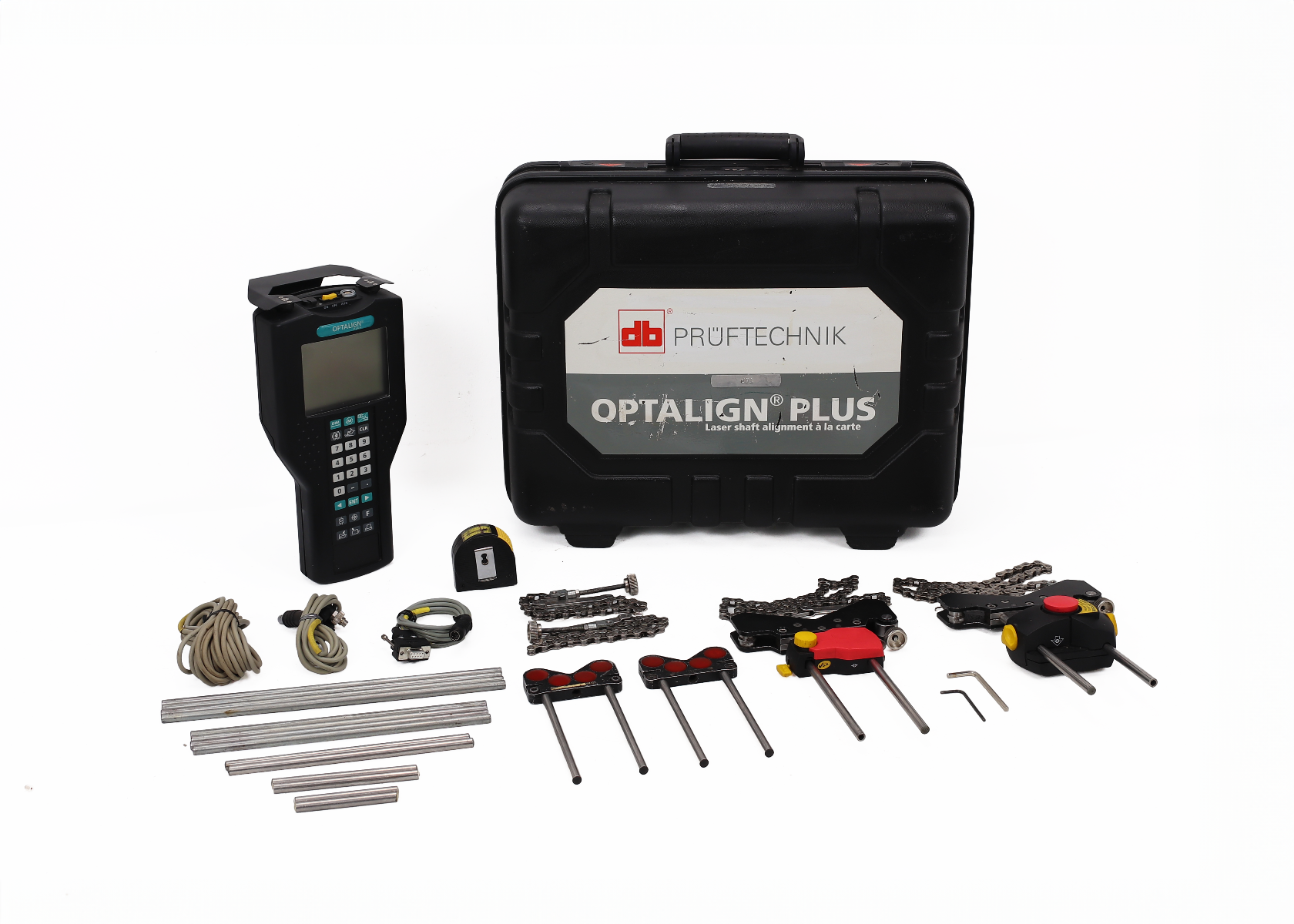

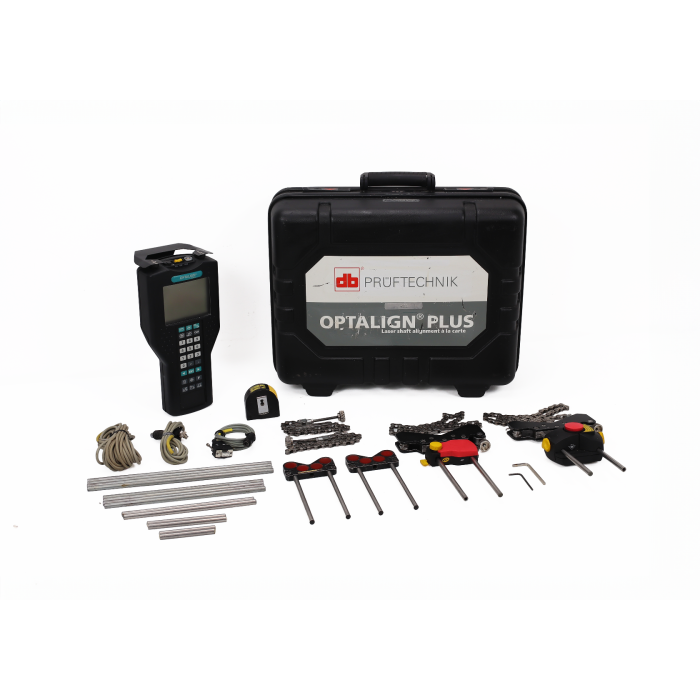

  • 1 x Pruftechnik Optalign Plus Control Unit ALI 5.200
  • 1 x Pruftechnik Optalign Plus Transducer ALI 5.100
    • 1 x Dust Cap ALI 5.105
  • 1 x Pruftechnik Optalign Plus Reflector ALI 5.110
    • 1 x Dust Cap ALI 5.115
  • 1 x Pruftechnik Optalign Beam Deflector ALI 5.106
  • 1 x Pruftechnik Printer Cable 5.221
  • 1 x Converter, Serial/Parallel ALI 5.220
  • 1 x Pruftechnik Compact Chain-type Bracket Set
    • Chains
      • 2 x 300mm
      • 2 x 600mm
    • Bracket Posts
      • 4 x 300mm
      • 4 x 200mm
      • 3 x 150mm
      • 2 x 90mm
      • 4 x 60mm
  • 1 x Bracket Frame Set ALI 2.117
    • 1 x Hex Key(s)
  • 1 x Compact Magnetic Bracket ALI 2.170
  • 1 x Tape Measure with Built in Leveler
  • 1 x Optalign Stand Control ALI 5.201
  • Documentation
    • Optalign Plus Operating Instructions and Alignment Handbook
    • Optalign Plus Short Instructions ALI 9.561G
    • Optalign Plus Series Product Catalog
    • Optalign Plus QRG
    • Optalign Plus Training Booklet
  • 1 x Pruftechnik Optalign Plus Case ALI5.010
    • Keys
