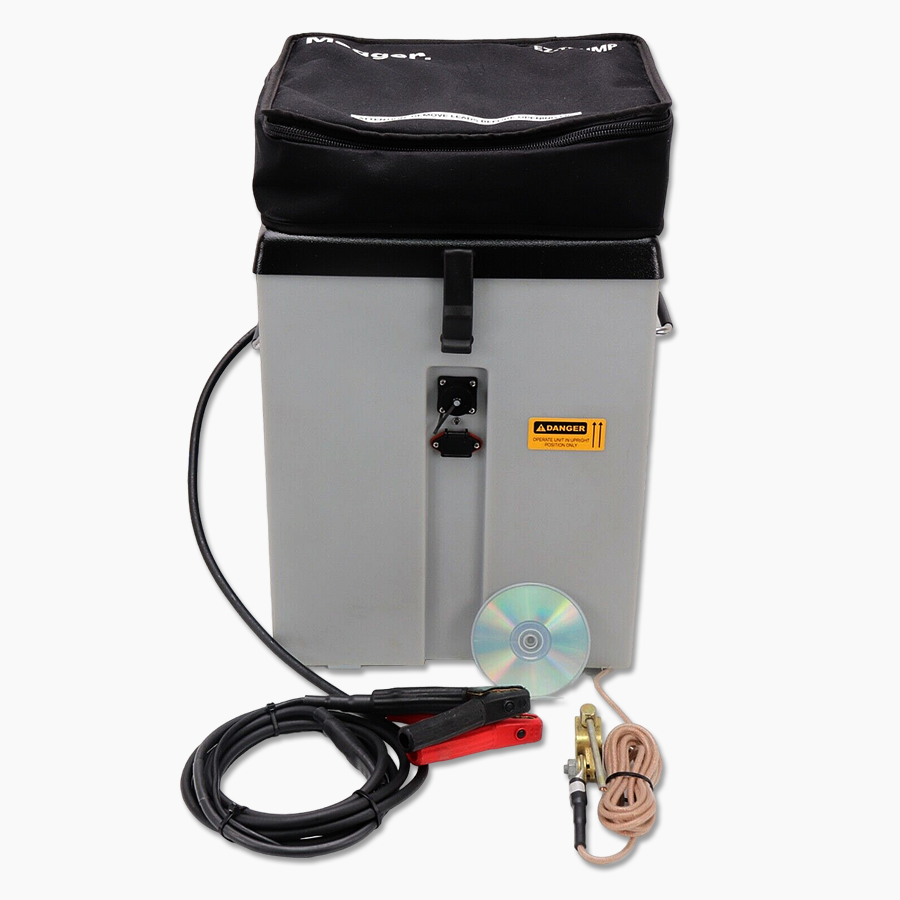

Megger EZ-THUMP 3kV Highly Portable Fault Locator Systems For LV Networks

• Megger EZ-Thump unit
• Safety ground C clamp for T4 safety ground termination
• HD battery Clamp w/ 10mm male MC red and black
• Carrying bag for leads
• Manual

• Dual-stage capacitor surge discharge: 500 J @ 1.5 kV & 3.0 kV for new 3 kV model
• Single-stage capacitor surge discharge: 500 J @ 4 kV for 4 kV model
• Max. burn current up to 94mA depending on voltage
• Compact and lightweight, 75 lbs (34 kg)
• Battery and AC line operation; field-replaceable battery
• Automatic end of cable and distance to fault indication
• TDR prelocation of low resistive faults, LV/MV cables
• Multishot feature in ARM mode for optimum fault capture of flashover faults in LV/MV cables
• Fault pinpointing, High Resistive Fault, LV/MV cables
• Fault pinpointing, "Ground Faults", LV cables
• Sheath testing and sheath fault locating, MV cables
• F-OHM safety feature to ensure safe connections
• Interface for remote EMERGENCY OFF box
• 7 in. HiBrite color display for outdoor visibility
• The dual-stage 3 kV EZ-Thump is the first of its kind in the entire market, and along with the updated 4 kV singlestage unit they are portable, compact and lightweight, battery and AC line operated cable fault location systems specifically designed for fault locating of shielded and unshielded MV and LV power cables. The newest version V3 features Multishot Technolgy when performing ARM prelocation.
• Due to their portable, robust and (wet) outdoor-capable enclosure, they are ideally suited for all typical fault locating operations on LV/MV cables up to 5kV system voltage either in industrial applications, street light fault locating or fault locating of LV power circuits in the utility industry.
• The EZT3DV3 model is the only dual-stage 3 kV unit in the market which addresses LV cables with either 600 V or 1000 V ratings and a max permissible test level of 3 Uo (1.8 kV or 3 kV).
• The EZ-Thump units offer:
• TDR method to prelocate very low resistance cable faults.
• Arc Reflection Method (ARM ) prelocation featuring Multishot Technology, of high resistance / f lashover faults in LV/MV cables.
• Dual-stage 500 Joule surge generator for pinpointing of high resistive faults at 0-1.5 kV or 0-3 kV (3 kV model) or as single-stage 500 J 0-4 kV (4 kV model).
• Testing 0-1.5 / 0-3 kV or 0-4 kV for breakdown detection.
• DC Hipot Test 0-1.5 kV / 0-3 kV or single-stage 0-4 kV,timing 1-30 minutes, with insulation resistance indication
• Sheath testing / sheath fault locating MV cables
• Ground fault pinpointing LV / unshielded cables
• DC Hipot Test 0-1.5 kV / 0-3 kV or single-stage 0-4 kV
