Fujikura FSM-60S SM MM Core Alignment Fiber Fusion Splicer w/ CT30 Cleaver

SKU: CART-02507
Model: FSM-60S
Product Condition: Certified Pre-owned
$4,499.95

Fujikura FSM-60S Fiber Fusion Splicer: Precise core alignment, fast splicing, and durable design. Ideal for SM/MM fibers. Includes essential accessories for seamless use.

Read more
Estimated delivery: 3 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
Fujikura Core Aligning Fusion Splicer Single Fiber Splicers Fusion Splicers Fiber Optics Testing Network/Cable Testers
Product Description

The Fujikura FSM-60S Core Alignment Fiber Fusion Splicer is the ultimate solution for precise, efficient fiber splicing. Whether you're working with single-mode or multi-mode fibers, this advanced splicer provides fast, reliable results with minimal splice loss. Built for professionals, it ensures a seamless fusion process with minimal downtime, making it the ideal tool for both field and workshop use. Upgrade your fiber splicing efficiency with the FSM-60S today!



Key Features:



  • High Precision Splicing: Achieves low splice loss with both SM and MM fibers for superior performance.
  • Fast Splicing Time: Delivers splices in as little as 9 seconds, increasing productivity.
  • Versatile Fiber Compatibility: Supports a wide range of fibers, including ITU-T G.652, G.651, G.653, and G.655.
  • Durable and Lightweight: Built to withstand tough environments, weighing just 2.7 kg (with battery pack).
  • Clear Viewing Display: 4.1-inch color LCD screen with dual CMOS cameras for precise fiber alignment.
  • Built-in Tube Heater: Automatic start with up to 20 reference heat cycles for efficient protection sleeve installation.
  •

Benefits:



  • Increased Productivity: Fast splice times allow you to complete more jobs in less time.
  • High Accuracy: Precise core alignment and low splice loss ensure the best performance for your fiber network.
  • Reliable in Harsh Conditions: The splicer operates in challenging environments, making it perfect for field use.
  • Convenient and Portable: Lightweight and easy to carry, ensuring comfort during long work sessions.
  • Easy Fiber Handling: Dual-camera viewing and automatic image flipping for quick and accurate fiber preparation.
  •

Ready to enhance your fiber splicing process? The Fujikura FSM-60S offers unmatched precision and performance for professionals!

Specifications
Specifications
MPN S014532
Model FSM-60S
Product Condition Certified Pre-owned
Length 9
Width (In.) 9
Height (In.) 9
Weight 8.00
Stock State In Stock
Condition Type Certified Pre-Owned
Item Returns This item can be returned
Brand Fujikura
Model Number FSM-60S
Applicable Fibers SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655), and other SMF including ITU-T G.657 fibers
Fibre Count Single
Cladding Diameter 80 to 150µm
Coating Diameter 100 to 1000µm
Fibre Cleaved Length 8mm to 16mm using Sheath Clamp A, B, or C/ 10mm using FH-60-250, FH-60-900
Actual Average Splice Loss 0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS
Splice Time Typical 9 seconds with standard SM fiber
Return Loss 60dB or greater
Splicing Modes 100 total modes available, including preset and user-programmable modes
Splice Loss Estimate Accurate loss estimation based on core deformations and axis offset
Attenuation Splice Function 0.1dB to 15dB adjustable in 0.01dB steps
Storage of Splice Results Last 2000 results stored in internal memory
Fibre Display X/Y or both X and Y simultaneously
Magnification 300x for single X/Y view, or 187x for X and Y view
Viewing Method Dual CMOS cameras for fiber viewing and 4.1-inch TFT color LCD monitor
Operating Condition 0-5000m above sea level, 0-95% RH, -10 to 50°C
Mechanical Proof Test 2N (standard)
Tube Heater Built-in auto-start with up to 20 reference heating modes
Tube Heat Time Typical 30 seconds with FP-03 protection sleeve
Applicable Protection Sleeve Length 60mm, 40mm, and micro sleeves
Number of Splice/Heating Cycles with Battery 160 cycles with BTR-08 battery
Power Supply Auto voltage selection from 100 to 240V AC or 10 to 15V DC
Wind Protection Max. wind velocity of 15m/s
Dimensions (L x W x H) 5.35 x 6.34 x 5.63 inches (136 x 161 x 143 mm)
Weight 5.95 lbs (2.7 kg with BTR-08 battery)

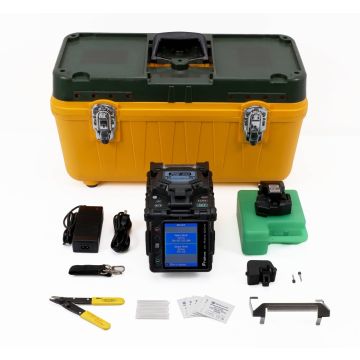

What's in the box?
  • 1 x Fujikura FSM-60S S014532 Core Alignment Fiber Fusion Splicer
  • 1 x CT-30 High Precision Fiber Cleaver
  • 1 x ADC-13 AC Adapter Battery Charger
  • 1 x BTR-08 Battery Pack
  • 1 x JP-05 J Plate
  • 1 x AC Adapter/Battery Charger
  • 1 x DCC-14 Cord Assembly
  • 1 x Alcohol Dispenser
  • 1 x Fiber Optic Plier
  • 1 x AC Power Cord
  • 1 x Hard Transport Case
