Fujikura FSM-60R Fusion Splicer w/ CT-30 Cleaver

SKU: CART-05632
Model: FSM-60R
Product Condition: Certified Pre-owned
$5,199.95

Boost your fiber splicing efficiency with the Fujikura FSM-60R Ribbon Fusion Splicer and CT-30 Fiber Cleaver! This combo offers precision splicing for up to 12 fibers and reliable cleaving. Upgrade your toolkit now and streamline your fiber optic projects!

Read more
Estimated delivery: 3 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
Fujikura Ribbon Splicers Fusion Splicers Fiber Optics Testing Network/Cable Testers
Product Description

Fujikura FSM-60R Ribbon Fusion Splicer – Precision and Durability

Advanced Splicing Solution for Single and Ribbon Fiber Applications

The Fujikura FSM-60R Ribbon Fusion Splicer combines precision, reliability, and rugged design, offering unmatched performance for single and up to 12-fiber ribbon splicing. With automated features and environmental resistance, it ensures seamless operation in demanding conditions.


Key Features and Benefits

•Versatile Splicing: Supports single fiber and 2-12 fiber ribbon splicing.
•Rugged Construction: Resists shock, dust, and moisture, ensuring durability in harsh environments.
•Automated Functions: Includes auto-start splicing, tube heater operation, ribbon fiber identification, and arc calibration for improved efficiency.
•Dual Monitor Position: Automatic image orientation for convenience during operation.
•Long Battery Life: Up to 90 splice/heat cycles per charge with simultaneous charging during use.
•Enhanced Visibility: Anti-reflective color LCD for excellent viewing in bright sunlight.
•Data Management: Download splice data, video images, and software updates via PC for reporting and peak performance.


Uses in Different Industries

•Telecommunications: Ideal for high-volume fiber optic network installations.
•Data Centers: Ensures reliable splicing for critical infrastructure.
•Industrial Applications: Suitable for harsh environments requiring robust equipment.
•Fiber Optic Maintenance: Perfect for routine inspections and repairs in commercial settings.

Upgrade to the Fujikura FSM-60R Ribbon Fusion Splicer today! Experience precision splicing, rugged durability, and advanced automation for your fiber optic projects. Order now to enhance your productivity!
Specifications
Specifications
MPN S014563
Model FSM-60R
Product Condition Certified Pre-owned
Length 24
Width (In.) 12
Height (In.) 12
Weight 20.00
Stock State In Stock
Condition Type Certified Pre-Owned
Item Returns This item can be returned
Applicable type of Fibers

SM（ITU-T G.652）, MM（ITU-T G.651）, DS（ITU -T G.653）, NZDS（ITU-T G.655）
Fiber Count

Single, 2, 4, 5, 6, 8, 10 and 12
Applicable fiber Dimensions

Ribbon : Cladding diameter 125μm, Ribbon fiber thickness 0.25 to 0.4mm

Single : Cladding diameter 125μm, Coating diameter 250μm and 900μm
Fiber Cleaved length

10mm
Splicing Modes

Total 100 modes
Typical Splice Loss

0.05dB with SM, 0.02dB with MM, 0.08dB with DS, 0.08dB with NZDS.
Return Loss

>>60dB
Splicing Time

Typical 20sec. with standard SM （ITU-T G.652）
Tube Heater/Heating Time

Built-in tube heater with 30 heating modes. / Typical 40sec with Fujikura FP-04T and 50sec with FP-05
Applicable Protection Sleeve

60mm, 40mm and Fujikura FPS01 series
Storage of Splice Result

The last 2000 results to be stored in the internal memory.
Tension Test

1.96 to 2.25N
Operating Condition

0 to 3660m above sea level, 0 to 95%RH and -10 to 50 degC and up to 15m/s wind velocity, respectively
Storage Condition

0 to 95%RH and -40 to 80 degC respectively.

Battery : -20 to 30 degC for long term
Dimensions

136W×161D×143H［mm］ excluding rubber foot
Weight

2.1kg with AC adaptor ADC-13, 2.5kg with battery BTR-08
Viewing method and display

Two CMOS cameras and 4.1" color LCD monitor
Fiber View and Magnifiation

X / Y （35X magnification), or both X and Y simultaneously （35X magnification). Changeable 35X to 90X
Number of Splice Cycles with Battery

Typical 90 cycles （splice / tube heat） with BTR-08
Power supply

Applicable voltage from 100 to 240V AC or 10 to 15V DC with ADC-13. 13.2V DC with BTR-08
Electrode Life

1000 arc-discharges
Terminals

USB 1.1 （Mini-B type） connector for PC communication.

6-pin Mini-DIN connector for HJS-02, HJS-03 or SH-8C power supply
Shock Resistance

76cm（30inch） bottom surface drop
Dust Resistance

Exposure to dust （0.1 to 500μm dia. Alumina Silicate）
Rain Resistance

R=10mm/h for 10min.

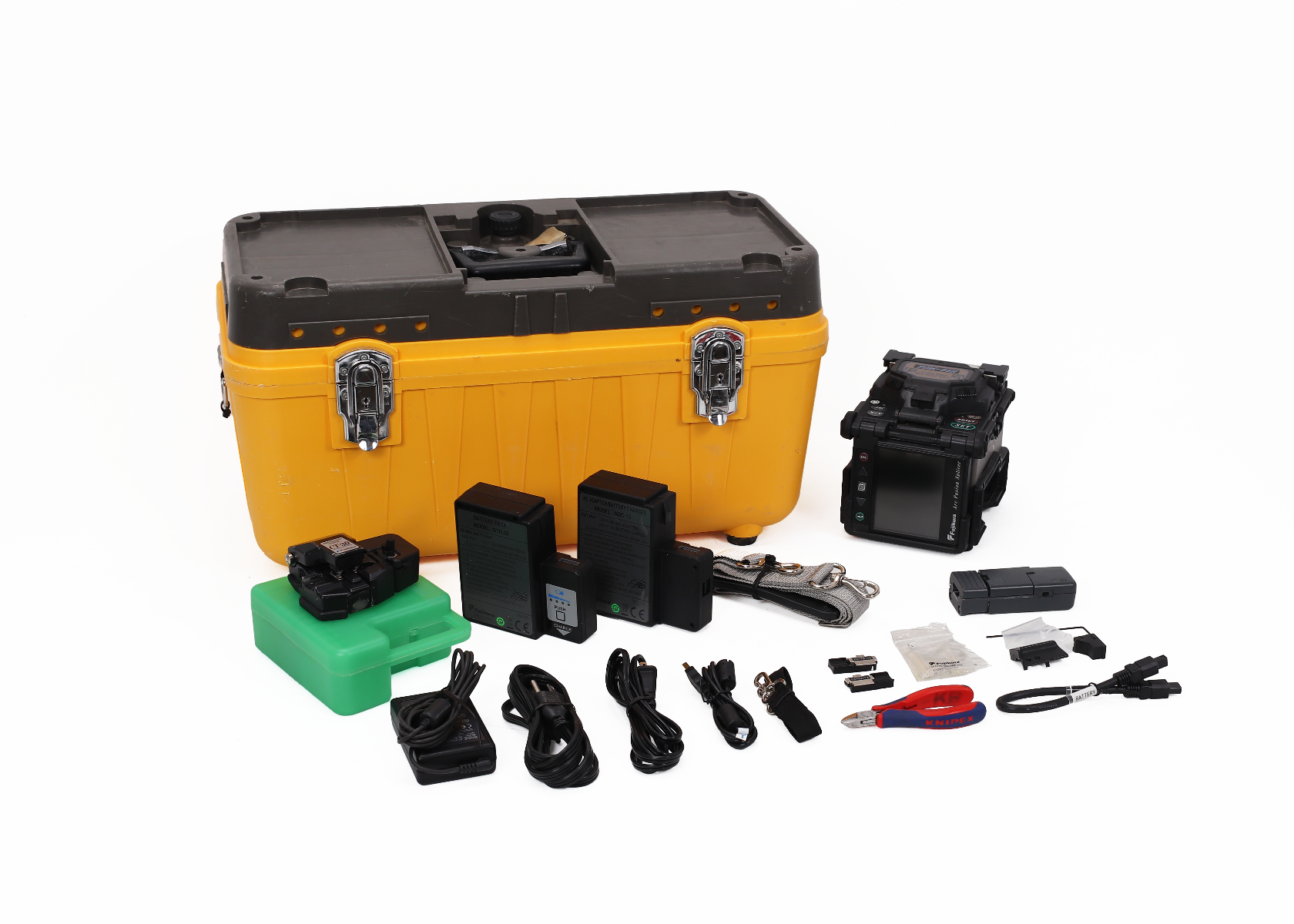

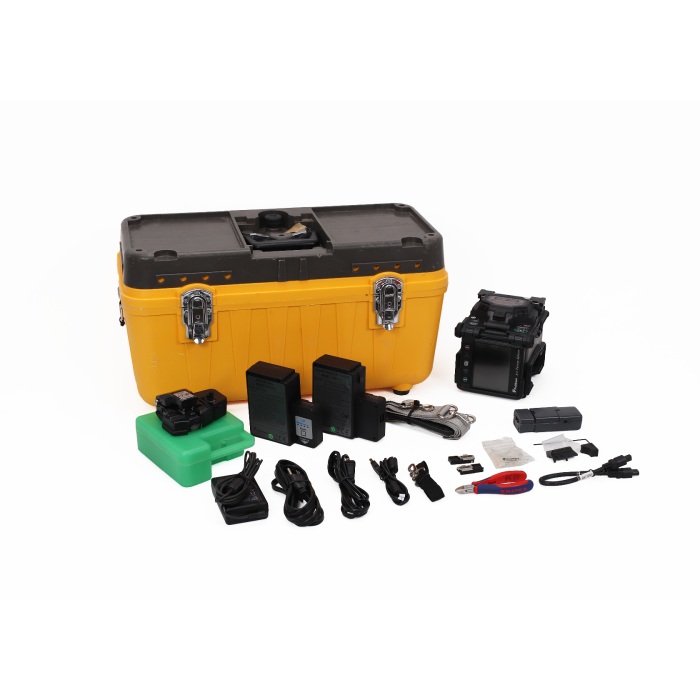

What's in the box?
  • 1 x S014563 Fujiikura FSM-60R 12 Ribbon Fusion Splicer Unit (6202)
  • 1 x S012076 CT-30 Cleaver
  • 1 x S010340 HJS-02 Hot Jacket Stripper
  • 1 x S014535 ADC-13 AC Adapter
  • 1 x S014540 BTR-08 Battery
  • 1 x AFL S017464 FH-70-12  Fiber Holder (set)
  • 1 x S014541 DCC-14 Battery Charge Cord
  • 1 x S015582 DCC-11 Power Cord for Hot Jack Stripper
  • 1 x Pliers
  • 1 x Hard Transit Case
  • 1 x USB Cord
