FTTH Innovations FIG Air Blown Microfibre Installation Tool w/ Water Separator

SKU: CART-0333
Model: F.I.G
Product Condition: Certified Pre-owned
$3,999.95

FTTH Innovations FIG air blown microfibre installation tool with electronic push force control and cruise control mode for controlled fibre installation in microduct at speeds up to 100 m/min.

Read more
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
FTTH Fiber Optic Testers Fiber Installation Tools Network, Cable & Fiber Testers
Product Description

FTTH Innovations FIG controlled fibre installation in microduct systems

Air blown microfibre installation requires controlled application of pushing force to move fibre through microduct using compressed air. Inconsistent force or air quality can interrupt installation and affect cable handling.

The FTTH Innovations FIG applies electronically controlled pushing force to fibre during installation. It combines battery-powered drive with regulated air input to support controlled microfibre installation in field environments



Electronic Push Force Control System

  • Installs air blown microfibre into microduct systems
  • Electronic push force control regulates force applied to fibre
  • Manual trigger mode enables direct operator control
  • Cruise control mode automatically adjusts speed and force
  • 1.2 mm adaptor plates support fibre up to 1.1 mm diameter

Air and Power Operation

The system operates using a regulated compressed air supply up to 10 bar with a minimum flow of 50 litres per minute. Power is supplied by rechargeable 12V Li-ion batteries, supporting portable field deployment.

Application Context

  • Air blown microfibre installation in telecom networks
  • Microduct fibre deployment in field environments
  • Controlled fibre installation requiring regulated push force
Specifications
Specifications
MPN F19-1000
Product Condition Certified Pre-owned
Shipping Length (in.) 24
Shipping Width (In.) 20
Shipping Height (In.) 10
Condition Type Certified Pre-Owned
Item Returns This item can be returned
Specification Value
Manufacturer FTTH Innovations Ltd
Model FIG
Instrument Type Fibre Installation Tool
Application Air blown microfibre installation into microduct
Operation Modes Manual trigger mode; Cruise control mode
Maximum Installation Speed Up to 100 m/min
Maximum Push Force 150 N
Standard Adaptor Plates 1.2 mm
Supported Fibre Size Up to 1.1 mm diameter
Compressed Air Requirement Up to 10 bar regulated air supply
Minimum Air Flow 50 litres/minute
Power Source Rechargeable 12V Li-ion battery
Batteries Included 2 x 12V 2.0Ah Li-ion
Charger AC mains battery charger
Display LCD display

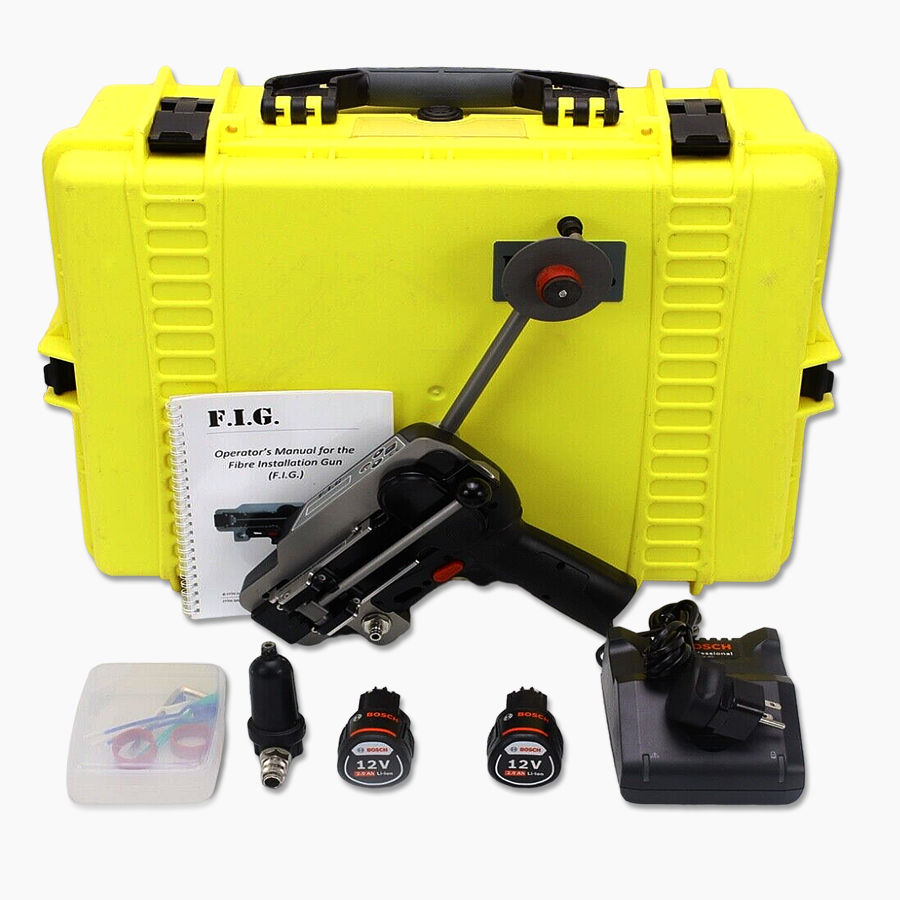

What's in the box?
  • 1 x FTTH Innovations FIG Fibre Installation Tool
  • 1 x Bosch Professional GAL12V-40 battery charger
    • 2 x Bosch 12V 2.0Ah Li-ion batteries
  • 1 x Set of 1.2 mm adaptor plates
  • 1 x Water separator
  • 1 x Adaptor plate gasket set
    • Red
    • Green
    • White
    • Blue
  • 2 x Feed Wheel Tires
  • 2 x Hex keys
  • 1 x FTTH FIG Operator's Manual
  • 1 x Hard carry case
