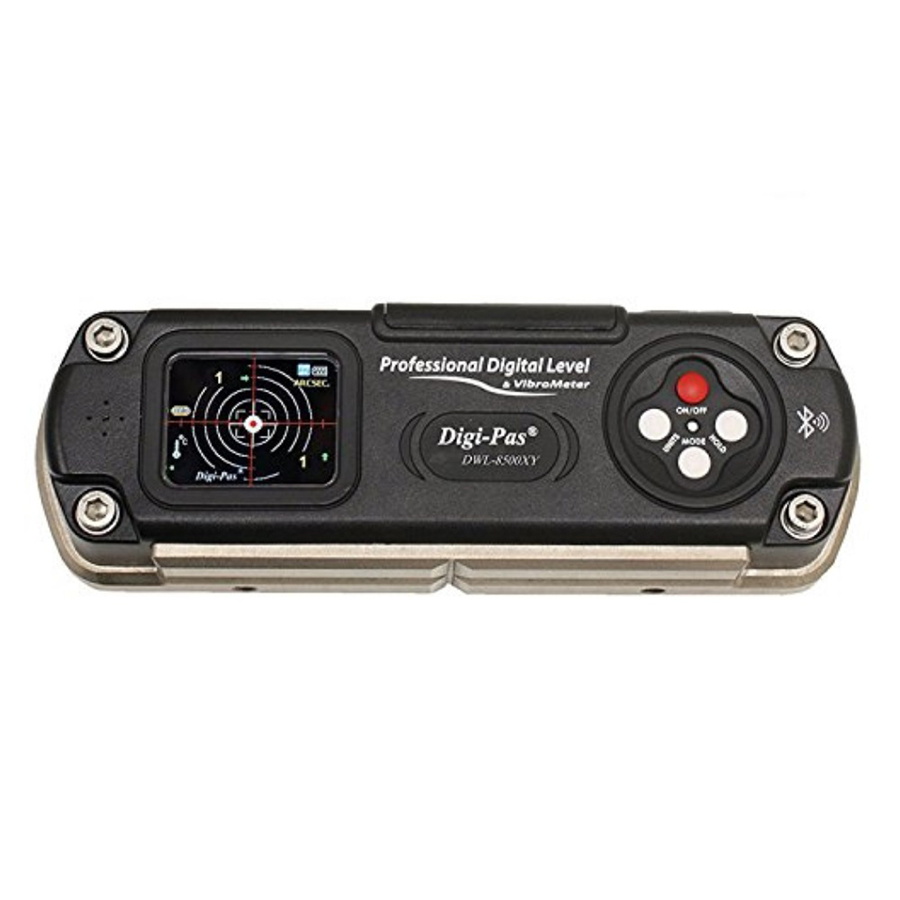

Digi-Pas DWL8500XY Bluetooth 2-Axis Ultra-Precision Digital Level & Inclinometer, NIST-Traceable

The Digi-Pas DWL8500XY is a 2-axis ultra precision digital level designed for high-resolution leveling and inclination measurement. It measures angular deviation in single-axis and dual-axis modes with 1 arcsec resolution and supports USB and Bluetooth synchronization with PC Sync Software Professional Edition. Its measurement, graphing, and vibration display functions support precision alignment and leveling tasks.

- Measures angular deviation in single-axis or dual-axis mode with digital readout and on-screen directional indication.
- Uses Absolute Level setting to establish measurements in accordance with maximum specified device accuracy.
- Uses Alternate Zero setting to set any angle to 0 arcsec as a reference for relative comparison.
- Displays real-time angle movement and dual-axis position on a color TFT LCD for direct leveling interpretation.
- Supports USB or Bluetooth synchronization with a computer running PC Sync Software Professional Edition.

- Single-axis measurement range: 0 to 14400 arcsec (0.0000° to ±4.0000°).
- Dual-axis measurement range: 0 to 7200 arcsec (0.0000° to ±2.0000°).
- Resolution: 1 arcsec; repeatability: 1 arcsec.
- Accuracy: ±1 arcsec at 0 to 1080 arcsec and ±3 arcsec at other angles.
- Includes angle meter and vibrometer modes with real-time continuous line graph display.

- Precision surface leveling and inclination verification.
- Relative angle comparison using a user-defined zero reference.
- Vibration observation and continuous angle monitoring in setup and measurement workflows.
