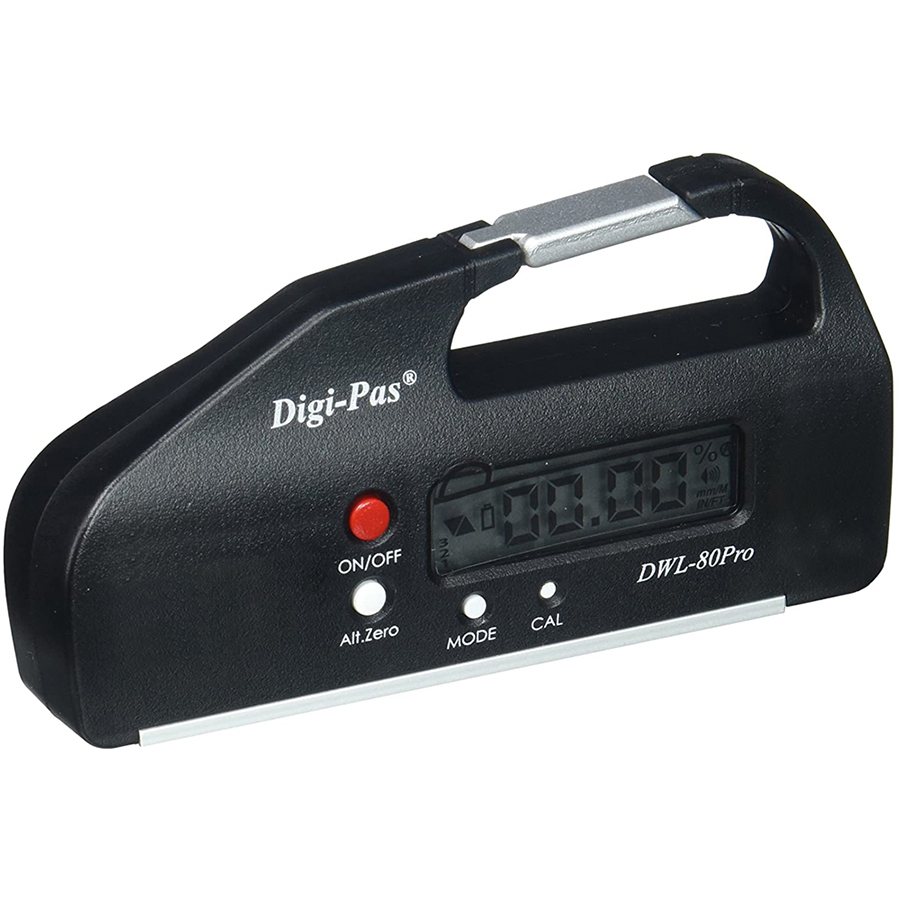

Digi-Pas DWL80Pro Pocket Size Digital Level

SKU: CART-0995
Model: 2-00082-99
Product Condition: New
$45.90

Digi-Pas DWL80Pro Pocket Size Digital Level delivers 0.05° resolution, 360° measurement, magnetic mounting, and multi-unit angle display in a compact handheld format.

Read more
Estimated delivery: 5 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
Digi-Pas Measuring Tools & Scanners Construction
Product Description

Digital Angle Measurement for Alignment and Leveling Tasks

The Digi-Pas DWL80Pro is a pocket-size digital level designed for angle and inclination measurement. It measures relative and absolute angles across a 360° range and displays readings in degree, % slope, mm/M, and in/Ft. Its compact format supports alignment, installation, and general leveling work.

Inclination Measurement with Relative Zero Referencing

- Measures angular position from 0° to 90° in four quadrants for full 360° coverage
- Uses Alternate Zero to set a reference angle for relative measurement between surfaces
- Displays readings digitally for direct angle and slope interpretation during setup and checking
- Auto-reverse display maintains readable measurement output when orientation changes

Measurement Functions and Display Capabilities

- Resolution is 0.05° (1.0 mm/M)
- Accuracy is ±0.05° at around 0° and 90°, and ±0.2° from 1° to 89°
- Measurement units include degree, % slope, mm/M, and in/Ft
- Includes HOLD function, user self-calibration, magnetic base, and automatic shut off

Installation, Alignment, and General Leveling Work

- Suitable for checking and setting relative angles between two surfaces
- Supports home, DIY, and professional leveling workflows shown in product literature
- Applicable to alignment and installation tasks where compact digital angle measurement is needed

Specifications
Specifications
MPN 2-00082-99
Product Condition New
Shipping Length (in.) 7
Shipping Width (In.) 7
Shipping Height (In.) 7
Item Returns This item can be returned
BrandDigi-Pas
ModelDWL80Pro
MPN2-00082-99
TypePocket Size Digital Level
Measuring Range0° ~ 90°; 4 x 90° (360°)
Resolution0.05° (1.0 mm/M)
Accuracy±0.05° at around 0° & 90°; ±0.2° at 1° to 89°
Measurement UnitsDegree, %Slope, in/Ft, mm/M
DisplayLCD with inverted display
FunctionsHOLD, user self calibration, automatic shut off
BaseAluminium base with built-in magnet
Dimensions105 x 55 x 18 mm
Weight100 g
Battery2 x CR2032 (3V)
Operating Temperature0° ~ +50°C
Storage Temperature-10° ~ +60°C
ComplianceCE, FCC, RoHS
What's in the box?
  • 1 x Digi-Pas DWL80Pro Pocket Size Digital Level
