Pro'sKit 1246 Items

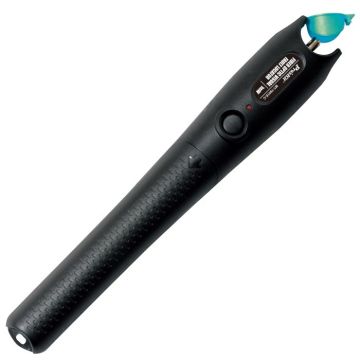

Portable, durable, and easy to use Supports 2.5mm universal connectors (for FC/SC/ST) Dust-proof & crash-proof cap design for laser head Wavelength 650 nm±10 nm Output Power 1 mW Laser CLASS II Tested fiber length 3-5 km Power (batteries) AA (1.5 V) x 2 Connector 2.5mm universal connector for FC, ST and SC OAL 7 in. Operating Temperature -10~55°C Storage Temperature -10~70°C Optional Accessory LC 1.25mm adaptor(5MT-7601-LC)

3 1/2 digits 1999 counts Dual slope A/D conversion Large backlit LCD display

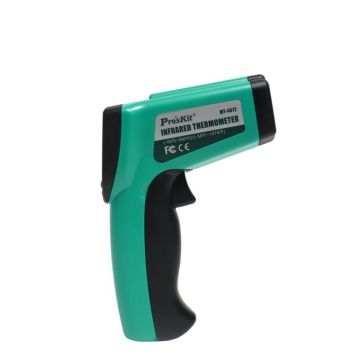

Temperature range: -58°F ~ 1076°F (-50°C to 580°C) Emissivity adjustable: 0.10 to 1.00 Distance spot ratio: 16:1 Resolution: 0.1°C / 0.1°F Temperature Range -50°C~580°C(-58°F ~1076°F) Accuracy ±2°C or ±2%°C/td> Distance Spot Ratio 16：1 Emissivity 0.1~1.0 Laser class Class II ,

3-1/2 digits 1999 counts 0.8% best accuracy Portable one-hand operation Data hold, low battery indication Max. jaw opening: 2 in. DCV 1,000V ±(0.8%+2d) ACV 750V ±(1.2%+4d) ACA 200/1,000A ±(3.0%+5d) Resistance 200Ω ±(1.0%+3d), 20kΩ ±(1.0%+1d) Continuity with beeper Y Power Source NEDA1604/6F22 (9V) x 1pcs not included

Compact and lightweight pocket-size device LCD display Non-contact ACV detector LED flashlight Data hold Low battery indication DCV 4200mV/2V/20V/200V±(0.5%+3d) 600V±(0.8%+5d) ACV 2V/20V/200V±(0.8%+3d) 600V±(1.0%+5d) DCA 200μA/2000μA /20mA/200mA±(1.8%+5d) ACA 200μA/2000μA /20mA/200mA±(2.0%+5d) Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ±(1.0%+3d) 20MΩ±(1.2%+15d) Non contact ACV detector Y Diode test Y Continuity with beep Y Certificate RoHS, CE EN61010-1 CATIII 600V Battery 2x1.5V AAA

ACV True-RMS Auto Range Pocket Size 3-3/4 digits 3999 counts DCV 400mV, 4/40/400V ±(0.5%+4d), 600V ±(1%+4d) ACV 400mV±(1.5%+6d), 4/40/400V ±(0.8%+6d), 600V ±(1.0%+6d) Resistance 400Ω ±(0.8%+5d) 4k/40k/400k/4MΩ ±(0.8%+4d), 40MΩ ±(1.2%+5d) Frequency 100/1000Hz/10k/100k/1MHz/10MHz ±(0.5%+4d) Capacitance 4nF ±(5%+40d), 40n/400n/4μ/40μ ±(3.5%+8d), 2000μF ±(5%+8d) Duty cycle 0.1~99.9% ±(0.5%+4d) Continuity with beeper 50 ±30Ω Diode test Range: 0 ~ 1.5V Resolution: 1mV Power source 2 x 1.5V AAA battery (Not included)

Full assortment of test functions Precise ACV ACA True RMS Measurements Overload Protection Non-contact voltage detection LCD Display 3-5/6 5999 Counts DCV 600mV/6V/60V/600V ±（0.5% +5d） ACV 600mV/6V/60V/600V ±（1% +4d） TRUE-RMS DCA 60mA/600mA ±（1.2% +5 d）, 10A±（3.0% +5d） ACA 60mA/600mA ±（1.5% +5 d）, 10A±（3.0% +5d）TRUE-RMS Frequency 9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz ±（1.5% +5d） Duty Cycle 21%~99%±（2.5% +5 d） ResistanceΩ 600Ω/6k/60k/600k/6M/60MΩ ±（0.8% +5d） Capacitance 60nF/600nF/6uF/60uF/600uF/6mF ±（4% + 5d）,100mF ±（4% +10d） Temperature(C/F) -20℃~1000℃±（1% + 3d） -4℉~2372℉±（1% + 3d） Continuity Buzzer ≤30Ω , buzzer beeps Diode Test Y NCV Detection Y Data Hold Y LED Light Y LCD Backlight Y Analog Bar Y Low Battery Indication Y Low Battery Indication Y Accessories Test Lead, K-type thermocouple, Manual Power 1.5V AAA x 3pcs (Not Included)

Complies with CE safety standard 3 1/2 digits 1999 counts Palm size for easy storage and carrying Digits 3 1/2 digits 1999 counts Accuracy 0.5% best accuracy DCV 2200m/2000m/20/200V ±(0.8%+3d), 500V ±(1.0%+3d) ACV 200/500V ±(1.2%+5d) DCA 2000u/20m/200mA ±(1.2%+5d), 10A ±(2.5%+5d) ACA 400μA/4000μA ±(1.5%+10d), 40mA/400mA ±(1.5%+10d), 10A ±(2.5%+15d) Resistance 200Ω ±(1.5%+5d) , 2000/20k/200kΩ ±(1.0%+3d) , 20MΩ ±(1.0%+5d), 200MΩ ±(1.0%(rdg-l0)+10d) Temperature -40~150˚C ±(1.0%+3d), 150-1000˚C ±(1.5%+15d)-40~302˚F(1.0%+4d), 302-1832˚F ±(1.5%+15d) Power source 1.5V AAA x 2 (not included) Accessories Test leads Square signal output 50Hz (5 Vp-p, 50KΩ)

Model No. MT-1210 Digits 3-1/2 digits 1999 counts Accuracy 1.0% best accuracy DCV 200mV/2V/20V/200V ±(1.0%+2d)500V ±(1.2%+5d) ACV 200/500V ±(2.5%+10d) DCA 200μ/2mA/20mA/200mA ±(2.0%+5d) 10A ±(3.0%+5d) Resistance 200Ω/2K/20K/200KΩ ±(1.0%+5d) 2MΩ ±(1.5%+5d) Extra function

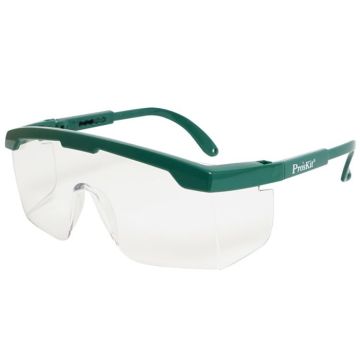

Anti-UV 400 for sun protection to keep eyes safe. Anti-fog coated lens ensure clear vision. Durable lenses provide high impact and scratch-resitance. 4-position temple length adjustment and hole for neck-strap. Meets the requirement of ANSI-Z87.1-2003 and GB14866-2006 standard. Frame Material Nylon Lens Material PC Product Length (Temples folded) 5.8 in. Product Width (Glasses included) 2.2 in. Temple Length(Max.) 4.6 in. Lens Size (L*W) 5.5*2.2 in. Lens Thickness 2.0mm Lens Coating
