Fujikura 70S SM MM Fixed V-Groove Fiber Fusion Splicer w/ CT-30 Fiber Cleaver (US Model)

SKU: CART-0096
Model: FSM-70S
Product Condition: Certified Pre-owned
$6,999.95

Fujikura 70S Fusion Splicer with CT-30 Cleaver: Fast, precise fiber splicing with 7-second cycle, rugged design, and 200 splices per charge. Built for field efficiency.

Read more
Estimated delivery: 3 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Product Description

The Fujikura 70S Fusion Splicer with CT-30 Cleaver is the ultimate solution for high-speed, precision fiber splicing. Whether you're working on telecom networks or FTTx deployments, this powerful tool ensures quick, reliable results. With its fast splice time, robust design, and automated features, the Fujikura 70S is built for professionals who demand the best. Maximize your efficiency and get exceptional fiber connectivity with this advanced fusion splicer combo.



Key Features:



  • Fast Splicing: Achieve 7-second splice times for quick and efficient results.
  • High Precision: Low splice loss for optimal network performance.
  • Automated Features: Wind protector, sheath clamps, and real-time arc calibration for seamless operation.
  • Rugged Design: Built for field environments with shock, dust, and moisture resistance.
  • Extended Battery Life: Complete up to 200 splices per charge with the powerful BTR-09 battery.
  •

Benefits:



  • Increased Efficiency: Minimize downtime and speed up your fiber splicing process with ultra-fast splice times.
  • Reliability in Harsh Conditions: The rugged design ensures durability even in challenging work environments.
  • Reduced Errors: Automated features reduce the potential for manual mistakes, ensuring accurate splices.
  • Portability: Lightweight design allows easy transport to different job sites.
  • Enhanced Workflow: Quick, consistent splicing results in less time spent on each project.
  •

Ready to take your fiber splicing projects to the next level? The Fujikura 70S Fusion Splicer with CT-30 Cleaver is your perfect choice for speed, precision, and efficiency!

Specifications
Specifications
MPN FSM-70S
Model FSM-70S
Product Condition Certified Pre-owned
Length 9
Width (In.) 9
Height (In.) 9
Weight 8.00
Stock State In Stock
Condition Type Certified Pre-Owned
Item Returns This item can be returned
Brand Fujikura
Model Number Fujikura 70S Fusion Splicer with CT-30 Cleaver
Splice Time 7 seconds (SM)
Cladding Diameter 80 - 150 µm
Coating Diameter 100 µm to 3,000 µm
Fiber Cleave Length 5 mm to 16 mm
Splice Loss 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS)
Splicing Modes 100 preset and user programmable modes
Viewing Method Dual cameras with 4.7” color LCD monitor
Magnification 320X for single X or Y view, 200X for both X and Y view
Splice Result Storage Last 2,000 results stored in the internal memory
Operating Condition 0 to 5,000 m above sea level, 0 to 95% RH, -10 to 50°C
Mechanical Proof Test 1.96 to 2.25N
Power Supply 100 to 240 V AC or 10 to 15 V DC with ADC-18, 14.8 V DC with BTR-09 battery
Electrode Life 5,000 Arc Discharges
Dimensions (W x D x H) (9" x 9" x 9")
Weight (10 lbs) with BTR-09 battery
Terminals USB 1.1 (USB-B type), Mini-DIN (6-pin) for HJS-02/03
Wind Protection Maximum wind velocity of 15 m/s (34 mph)
Tube Heater Built-in tube heater with 30 heating modes
Splice/Heat Cycles with Battery Typical 200 cycles with power-save functions activated
Protection Sleeve Length 60 mm, 40 mm, micro
Operating Temperature -10°C to 50°C

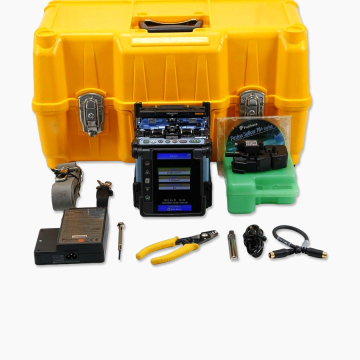

What's in the box?
  • 1 x Fujikura FSM-70S Fusion Splicer
  • 1 x Fujikura CT-30 High Precision Fiber Cleaver
  • 1 x ADC-18 Adapter with power cord
  • 1 x BTR-09 Lithium Ion Battery
  • 1 x Fiber Stripper
  • 1 x USB Cord
  • 1 x CD Instruction Manual
  • 1 x CC-30 Carrying Case
